Full-Scale LED Video Wall System for High-Impact Visual Installations
The
American DJ EVS3-7X4 is a professional-grade LED video wall system, designed to deliver stunning large-format visuals in touring, rental, or event production environments. This turnkey solution includes everything needed to build a 7-panel wide by 4-panel tall wall (approx. 140” x 80” or 12 ft. x 7 ft.), including panels, processor, rigging, data and power cabling, and video software (computer not included).
American DJ EVS3-7X4 Competitive Differences
- Massive display area with 28x EVS3 LED panels (3.91mm pixel pitch)
- High pixel density of 65,536 pixels per square meter for ultra-clear visuals
- Includes NovaStar VX400 video processor and Arkaos MediaMaster Express software
- All power and data cables included for immediate setup
- Panels are front and rear serviceable with corner protection
- Seven rigging bars included for secure flying or ground stacking
American DJ EVS3-7X4 Description
The
EVS3-7X4 LED wall system is engineered to meet the demands of large indoor productions, from corporate events to touring stages. Each of the 28 included
EVS3 LED panels features a tight 3.91mm pixel pitch and RGB SMD2121 LEDs for vibrant, crisp output. With 128x128 resolution per panel and 65,536 pixels per square meter, your video content comes to life in vivid detail.
These rugged and lightweight panels are both front and rear serviceable and include corner protectors to minimize transport damage. The included
NovaStar VX400 processor ensures flawless signal handling, and the Arkaos MediaMaster Express software provides creative control over video playback and effects.
Rigging bars, power cables, and data link cables are all included, making this a true plug-and-play package. Whether you’re building a wall for a stage show, house of worship, or exhibit booth, the EVS3-7X4 is a reliable and flexible choice.
EVS3-7X4 Features
- Complete 7x4 LED video wall system (Approx. 12 ft. x 7 ft.)
- 3.91mm pixel pitch and 128x128 resolution per panel
- 3-in-1 RGB SMD2121 LEDs for vibrant color reproduction
- Each panel weighs only 16.5 lbs with serviceable front/rear access
- Includes video processor, rigging, power/data cables, and software
- Supports Composite, VGA, DVI, HDMI, S-Video, Component, HD-SDI inputs
EVS3-7X4 Specifications
- Panel Count: 28x EVS3 LED Panels
- Panel Dimensions: 19.68” x 19.68” x 2.96” (500 x 500 x 75mm)
- Panel Weight: 16.5 lbs each
- Total Wall Size: Approx. 140” x 80” (12 ft. x 7 ft.)
- Pixel Pitch: 3.91mm
- Pixel Density: 128 x 128 per panel (65,536 pixels/m²)
- Brightness: 800 NITS
- Viewing Angle: 160° horizontal / 140° vertical
- Contrast Ratio: 5000:1
- Gray Scale: ≥14-bit
- Refresh Rate: 3840Hz
- Power Consumption: Max 120W, Avg 48W per panel
- Service Access: Front and Rear
- IP Rating: IP20 (Indoor Use Only)

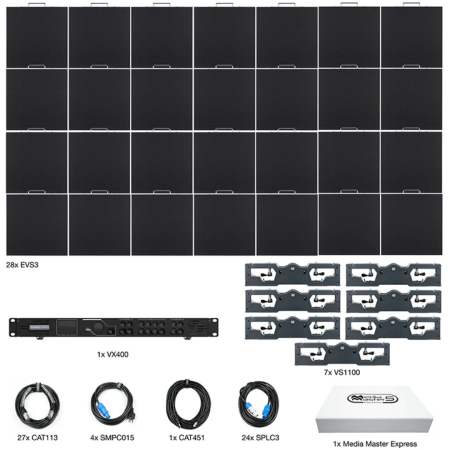

EVS3-7X4 Package Contents
- 28x EVS3 LED Video Panels
- 27x CAT6PRO3 – 3 ft. Cabinet-to-Cabinet Data Link Cables
- 1x CAT6S25FC – 25 ft. Processor-to-Cabinet Data Link Cable
- 24x SPLC3 – 3 ft. Locking Power Link Cables
- 4x SMPC15 – 15 ft. Locking Power to Edison Cables
- 1x NovaStar VX400 Video Processor
- 7x VSRB1 – Single Panel Rigging / Ground Stack Bars
- 1x MediaMaster Express Video Software License
Note: This system is intended for temporary use only and is not suitable for permanent installation. Computer not included.
ADJ EVS3-7X4
(American DJ EVS3 7X4)
