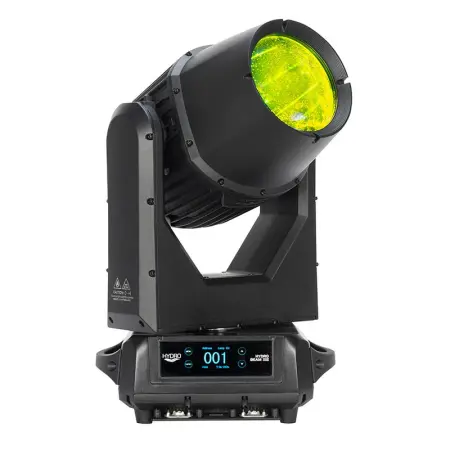

Designed to create stunning aerial effects both inside and outdoors, the ADJ Hydro Beam X12 is a powerful and feature-packed moving head beam fixture with an IP65 ‘outdoor’ rating. Harnessing the power of the latest Philips® Platinum 12R LL MSD Discharge Lamp technology, focussed through high quality optics, it creates a piercing beam of light with a tight 2-degree beam angle.
Designed for both indoor and outdoor use, the Hydro Beam X12 has a robust construction and an IP65-rating. Its durable casing protects it from dust, sand, moisture, and liquids, making it ideal for use in all situations from sandy beach parties to rainy festival fields. Perfect for all kinds of outdoor events, as well as installation in open-air clubs and other outside entertainment spaces, this ground-breaking fixture also offers an extended operational life and reduced maintenance requirement when installed indoors, due to its sealed casing design.
The Hydro Beam X12’s carefully curated selection of beam-shaping tools deliver the functionality that lighting designers need, while allowing the fixture to remain compact and agile. It features 14 colors + white, including UV, CTO (3200K) and CTB (6000K), with support for split colors and bidirectional scrolling. A static GOBO wheel features 16 patterns (plus open) optimized for aerial effects, including four beam reducers, and offers GOBO shake and bidirectional GOBO scrolling effects. The fixture also includes motorized focus, a Frost Filter to create a wash effect, and two rotating prisms (6-facet linear and 24-facet circular).
FEATURES:
DMX512 & RDM compatible
2° beam angle
High quality, optical glass lens
Motorized Focus + 16-bit fine focus
Frost Filter to create wash effect
2 Rotating prisms: 6-facet Linear and 24-facet Circular
0-100% smooth dimming
Various strobe effects with speed control
Wifly EXR, wireless DMX onboard
USB firmware update port
Fan cooled
Light Source:
Philips, 260W, MSD Platinum 12R LL Discharge Lamp (6,000 hours)
Color temperature: 7800K
LUX: 522,000 @10M
Color Wheel:
14 dichroic colors + white [Includes CTO (3200K), CTB (6000K) & UV]
Split Colors
Bidirectional color wheel scrolling
GOBO Wheel:
16 static GOBOs + open (4 GOBOs are beam reducers)
GOBO Shake Effect
Bidirectional gobo wheel scrolling
Prisms:
6-facet linear and 24-facet circular
Bidirectional prism rotation for each prism
Prisms can be overlayed
Control:
Configurable via RDM
Controllable via DMX512 via hardwire or wirelessly with Wifly EXR Transceiver (Sold Separately)
2 DMX Channel Modes: 14/18 Channels
Color LCD display with 4-button function menu
5 Dimmer Curves
0-100% smooth dimming
Various strobe effects with speed control
USB firmware update port
With Wired Digital Communication Network
Pan/Tilt:
Pan: 540 degrees (plus 16-bit fine pan)
Tilt: 270 degrees (plus 16-bit fine tilt)
Connections:
DMX Connections: 5-pin DMX In/Out
Power Connections: IP65 Locking Power In/Out
Electrical:
Multi-voltage operation: 100-240V, 50/60Hz
Max power consumption: 412W (@120V), 405W (@230V)
Dimensions & Weight:
Dimension: 14” (L) x 9.4” (W) x 24.4” (H) / 356 x 240 x 621mm
Weight: 48 lbs. / 21.8 kg.
What’s Included:
Omega Brackets for hanging
4.92ft. / 1.5m. IP65 Locking power cable
Approvals / Ratings:
cETLus (Control # 4000358)
CE Certified
IP65 (Temporary outdoor use only)
