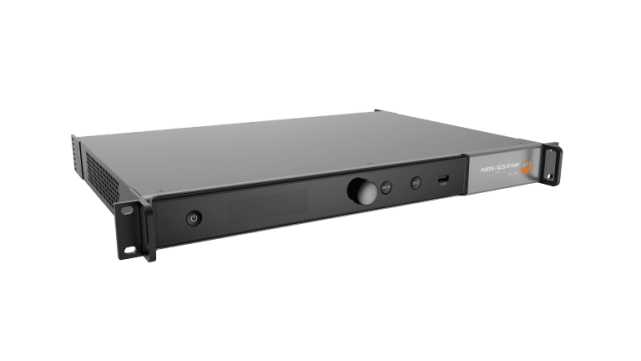

The MCTRL660 PRO is a professional controller developed by NovaStar. A single MCTRL660 PRO has a loading capacity of up to 1920×1200@60Hz. It supports custom resolutions with the width up to 3840 pixels and height up to 2560 pixels, which meets configuration requirement of ultra-large screens.

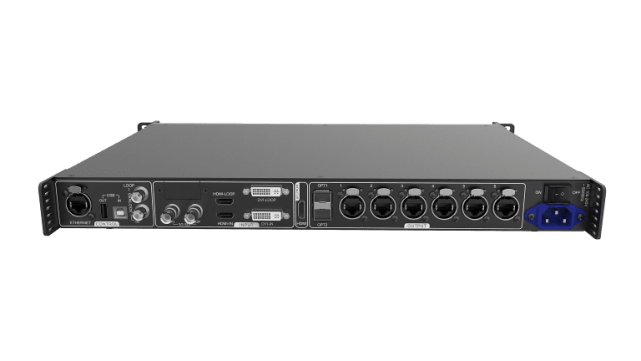

The MCTRL660 PRO has a variety of video connectors:
Input connectors: 1 × 3G-SDI, 1 × HDMI 1.4a, 1 × single-link DVI
Output connectors: 6 × Gigabit Ethernet port, 2 × 10G optical port
Loop output connectors: 1 × 3G-SDI LOOP, 1 × HDMI 1.4a LOOP, 1 × DVI LOOP
The MCTRL660 PRO has many industry-leading advanced technologies:
Input of ultra-high color depths: 10-bit/12-bit RGB 4:4:4/YCbCr 4:4:4, with input resolutions up to 1920×1080@60Hz, increasing color expression capabilities by 4096 times compared to 8-bit inputs, and presenting images with rich and delicate colors, smoother transitions, as well as clearer details
Supports individual Gamma adjustment for RGB when the color depth of input source is 10-bit or 12-bit, which effectively controls image non-uniformity under low grayscale and white balance offset to improve image quality.
Low latency: Less than 1 ms (when the start position of image is 0.)
Dual working modes: working as sending card and fiber converter
One-click backup and recovery, quickly recovering previous screen configurations to deal with sudden on-site failure
Image mirroring, allowing for more cool and dazzling stage effects
Auto LED screen configuration
Web control
Pixel level brightness and chroma calibration
Monitoring of inputs
Multiple MCTRL660 PRO units can be cascaded.
The MCTRL660 PRO is mainly used for the rental and fixed fields, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.
Input of ultra-high color depths: 10-bit/12-bit RGB 4:4:4/YCbCr 4:4:4, with input resolutions up to 1920×1080@60Hz
Low latency: Less than 1 ms (when the start position of image is 0.) Auto LED screen configuration
Web control
Image mirroring
Dual working modes: working as sending card and fiber converter Pixel level brightness and chroma calibration
Supports individual Gamma adjustment for RGB when the color depth of input source is 10-bit or 12-bit.
Monitoring of inputs
One-click backup and recovery
Multiple MCTRL660 PRO units can be cascaded.
