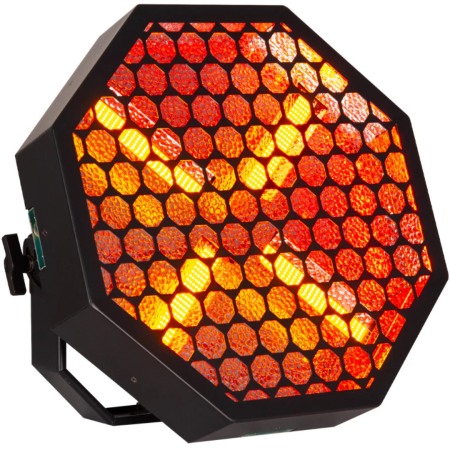

American DJ Vintage X

Retro Amber Blinder with RGB Background Effects in Octagon Design

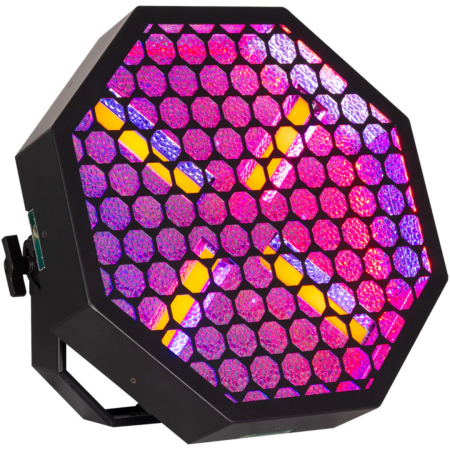

The American DJ Vintage X combines the warmth of a classic amber blinder with the versatility of RGB background LEDs in a striking octagonal housing. Featuring four 60W amber LEDs (2000K) and 64 RGB LEDs, it delivers smooth dimming, vibrant effects, and dynamic multi-layered visuals, making it ideal for concerts, theatrical productions, and immersive event environments.

American DJ Vintage X Competitive Differences

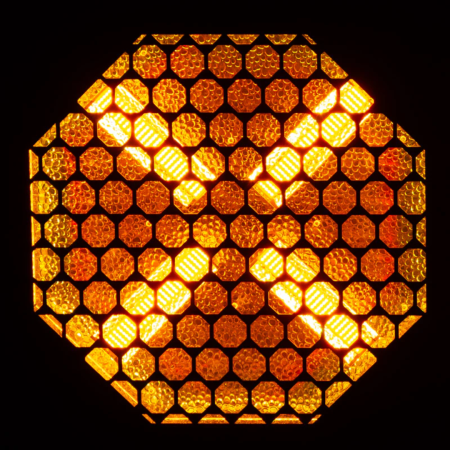

• Four 60W amber COB LEDs (2000K) for authentic retro blinder effects

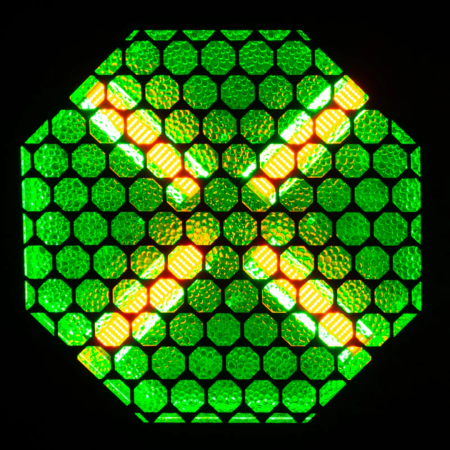

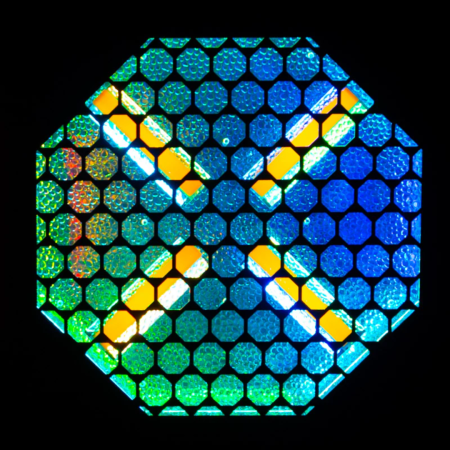

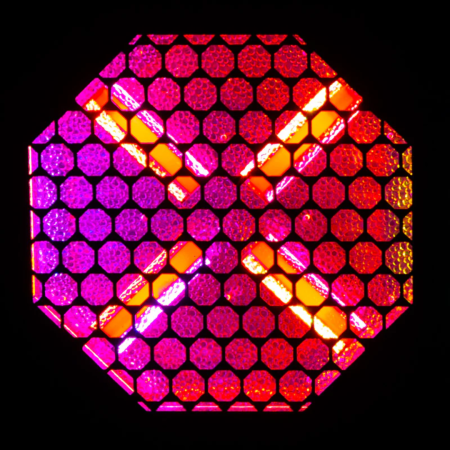

• 64x 3W RGB LEDs for bold background visuals and color effects
• Individually controllable LEDs with advanced pixel mapping
• Wide 150° field angle for expansive coverage
• Variable white control: 2700K–10,000K (RGB LEDs)
• Silent, flicker-free operation suitable for broadcast and live events
• 10 selectable DMX modes (10–218 channels) for flexible integration
• Aria X2 wireless management with OTA firmware/software updates
• Unique coffin lock system allows linking of up to 8 fixtures

American DJ Vintage X Description

The Vintage X delivers the perfect balance between vintage charm and modern performance. With four foreground amber LEDs (2000K), it produces a warm, tungsten-style blinder effect. Complementing this, the background system of 64 RGB LEDs provides vibrant color mixing, dynamic effects, and smooth dimming transitions for eye-catching stage visuals. Together, they output up to 8,000 lumens with wide coverage, creating both atmosphere and impact in live productions.

Engineered for creative versatility, the fixture includes built-in foreground and background programs, advanced strobe effects (0.1Hz–20Hz), multiple dimming curves, and selectable LED refresh rates (900Hz–25kHz) for flicker-free performance. Its OLED display and intuitive controls ensure user-friendly operation, while compatibility with DMX, RDM, Bluetooth, and Aria X2 wireless systems provides advanced connectivity and over-the-air firmware updates.

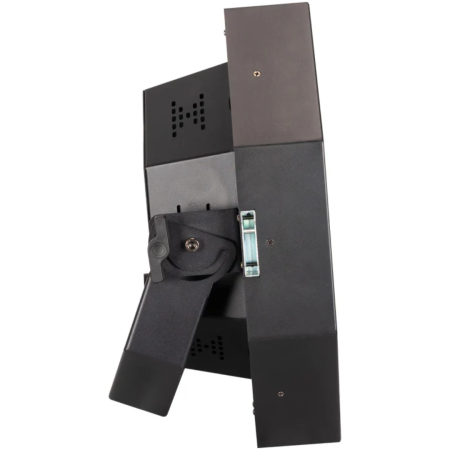

The rugged metal housing, adjustable bracket, and coffin lock system allow secure mounting and interlocking of up to 8 units, perfect for large-scale stage arrays. Lightweight yet powerful, the Vintage X is a flexible solution for designers looking to blend classic looks with modern technology.

Vintage X Features

• 4x 60W amber LEDs (2000K) for blinder effect
• 64x 3W RGB LEDs for background color effects
• Individually controllable LEDs via DMX
• Built-in programs for both foreground and background LEDs
• Variable white control: 2700K–10,000K (RGB LEDs)
• Electronic dimming with 0–100% control
• Electronic strobe effect: 0.1Hz–20Hz
• 6 selectable dimming modes
• 4 selectable dimming curves
• Selectable refresh rates: 900Hz–25kHz
• Silent, flicker-free operation
• Primary/Secondary mode for fixture syncing
• Coffin lock system for linking up to 8 units

Vintage X Specifications

• Foreground Source: 4x 60W amber LEDs (2000K ±50K)
• Background Source: 64x 3W RGB LEDs
• Total Output: 7000–8000 lumens
• Lux: 220 @ 5 meters
• Beam Angle: 140°
• Field Angle: 150°
• LED Lifespan: 50,000 hours (average)
• Power Input: AC100–240V, 50/60Hz
• Power Consumption: 200W
• Power Linking: 2 units @ 120V or 4 units @ 230V
• Control Protocols: DMX512, RDM, Bluetooth, Aria X2 Wireless
• DMX Modes: 10, 16, 25, 42, 47, 196, 203, 210, 214, 218 channels
• Onboard manual control with OLED display

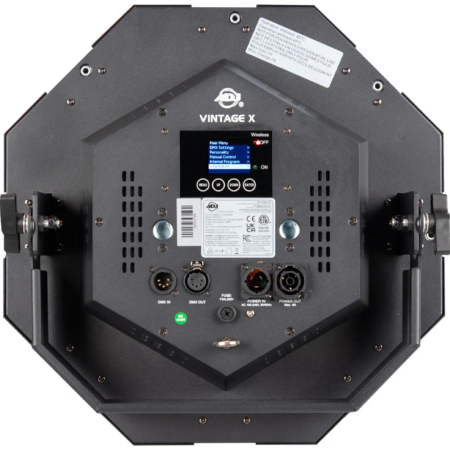

• Connections: 5-pin XLR DMX I/O, IP65 locking power I/O
• Housing: Metal, IP20 rated
• Mounting: Adjustable bracket, Omega clamp receivers (sold separately)
• Dimensions (L x W x H): 15.7" x 15.7" x 7.6" (398 x 398 x 194 mm)
• Weight: 18 lbs. (8.2 kg)
• Operating Temperature: -4°F to 113°F (-20°C to 45°C)
• Storage Temperature: -22°F to 113°F (-30°C to 45°C)
• Certifications: CE, FCC, cETLus (Control # 5027824)
• UPC: 810087374105

What's In The Box

• (1) American DJ Vintage X Fixture
• (1) IP65 Locking Power Cable
