Beam Wash Moving Head Fixture

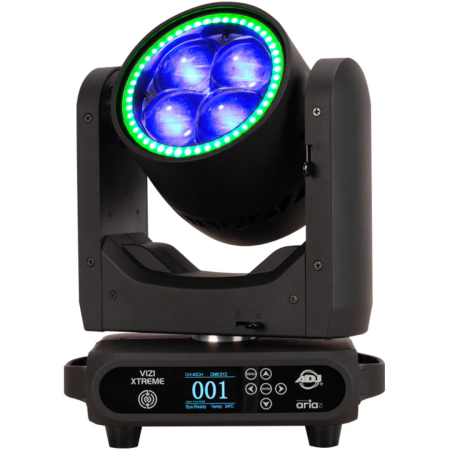

ADJ Vizi Xtreme is a compact, high-speed beam wash moving head that delivers intense output, ultra-fast movement, and layered effects in a lightweight form factor. With pixel-level control, wide zoom range, and integrated wireless connectivity, it's designed for professional lighting environments where creative flexibility is essential.
ADJ Vizi Xtreme Competitive Differences
- Four Individually Controlled 60W RGBL LEDs + 48 RGB Ring LEDs
- Motorized Zoom (3°–45°) and Optional 360° Continuous Pan/Tilt
ADJ Vizi Xtreme Description
The

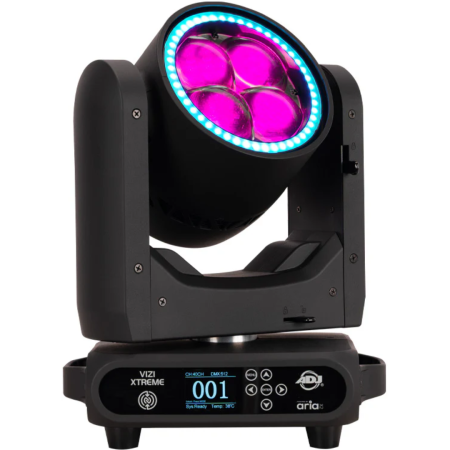

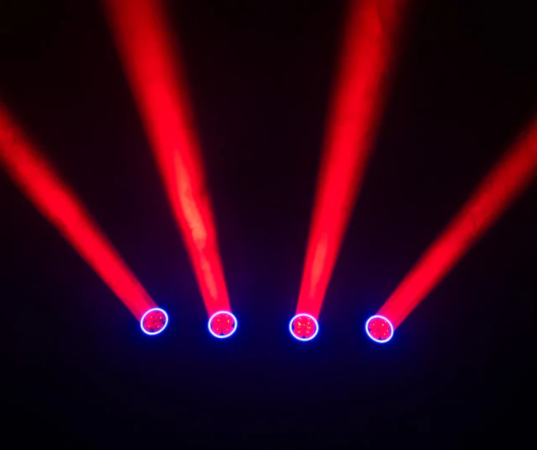

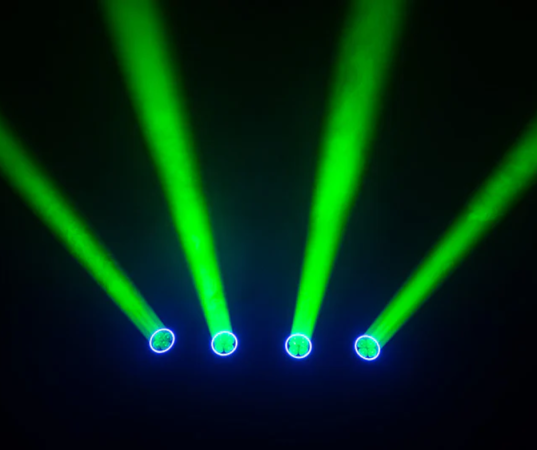

ADJ Vizi Xtreme sets a new standard for compact beam wash fixtures, delivering exceptional performance through a quad-core RGBL LED system and six-zone outer ring effects. Each of the four 60-watt LEDs can be controlled independently, allowing for pixel-mapped effects, while the outer ring of forty-eight 0.5-watt RGB LEDs creates dynamic chase patterns and eye-catching visual layers.

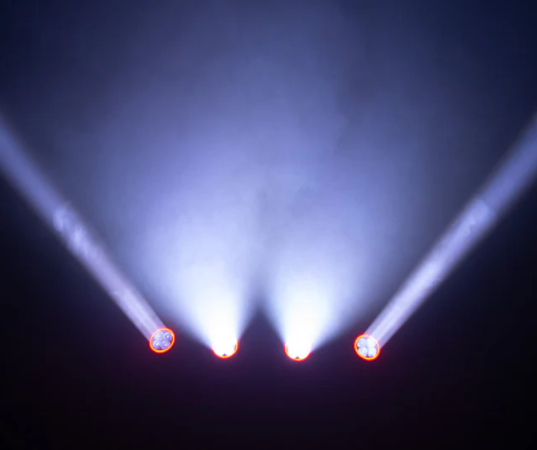

Offering a zoom range of 3° to 45°, the Vizi Xtreme transitions easily between razor-sharp aerial beams and rich, immersive washes. Optional 360° continuous pan and tilt movement, powered by 3-phase motors, allows for fluid, uninterrupted motion effects. Combined with a strobe rate of up to 10Hz, the fixture is well suited for concert stages, touring rigs, clubs, and high-impact productions.

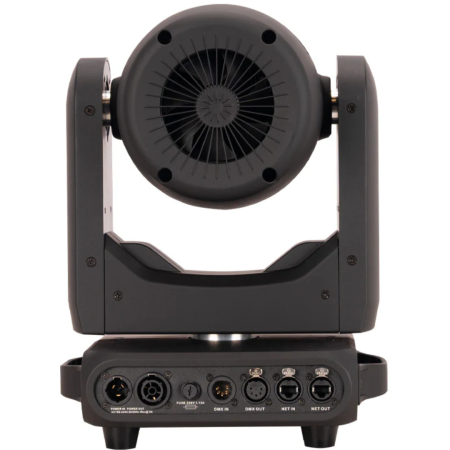

Control options include DMX, RDM, Art-Net, sACN, and onboard Aria X2 wireless DMX with NFC fixture management. A full-color, reversible LCD screen and 6-button menu make configuration simple, whether in permanent installations or mobile setups.
With 2,700 lumens of output and vibrant color control from 2700K to 10,000K, the Vizi Xtreme is a versatile, high-output fixture built for designers who demand speed, precision, and creative power.
Model Features
- 4 x 60W RGBL LEDs with individual pixel control
- 48 x 0.5W RGB LEDs in 6 controllable zones
- Motorized zoom from 3° to 45°
- Optional 360° continuous pan and tilt
- 2700K–10,000K color temperature control
- 1–10Hz electronic strobe rate
- Selectable dimming curves and refresh rates (up to 25kHz)
- Aria X2 wireless DMX with NFC configuration
- DMX, Art-Net, sACN, and RDM compatibility
Model Specifications
- LED Source: 4 x 60W RGBL + 48 x 0.5W RGB LEDs
- Zoom Range: 3°–45°
- Lumen Output: 2,700 Lumens
- CRI: 60
- Pan: 540° / Optional 360° continuous
- Tilt: 270° / Optional 360° continuous
- Max Power Consumption: 316W
- Voltage: 100–240V AC, 50/60Hz
- Dimensions: 10.9 x 7.87 x 14.34 in (276 x 200 x 364.2 mm)
- Weight: 15.4 lb (7 kg)
- IP Rating: IP20
- UPC: 818651029045
What's In The Box
- Vizi Xtreme moving head fixture
- Outdoor locking power cable (6.5 ft)
- 2 x Omega brackets
- Safety cable
American DJ Vizi Xtreme
(American DJ VIZ900)
