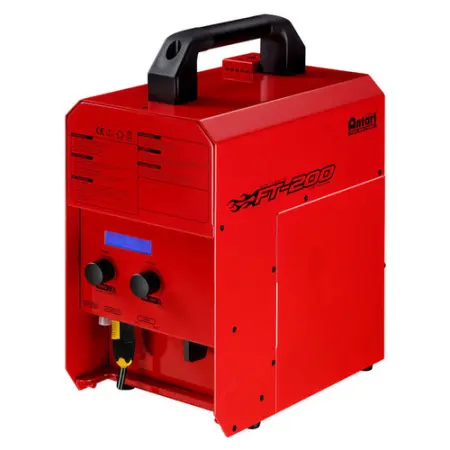

Antari FT-200

1600W Fire Training Fog Machine with DMX Control

Antari, a world renowned leader in entertainment atmospheric effects continues its expansion into fire and rescue training with the introduction of the all new FT-200 smoke generator.
Built on the success of Antari’s first smoke generator developed exclusively for fire and rescue training, the popular FT-100, the new FT-200 introduces new technologies to offer one of the worlds most rugged and advanced smoke generators for fire and rescue training.

Features:

All new advanced steel heater block that doubles the flow rate of the FT-100, essentially increasing output by 200%.
IP rated case design that allows the FT-200 to be used outdoor.
Sleek and compact casing design with a heavy-duty handle allows the unit to be easily transported and stored.
Capable of multi-position operation allowing the unit to generate smoke in either a vertical or horizontal position.
Built-in electronic timer for hands free operation.

IMPORTANT:  It is IP rated, only when it is operated upright (vertical position).

Specifications:

Output: 40,000 cubic ft/min
Initial Heat-Up Time: 7.5 mins (approx)
Fluid Consumption Rate: 270 mL/min (100% output)
Fluid Tank Capacity: 2.4L
Operating Time at Maximum Output: 8 min
Coverage: 16.4′ (5m) High x 3.3′ (1m) Wide
Control / Connections:Volume ad timer mode
DMX-512
W-2 wireless remote control (included)
Z-3 optional remote control (not included)
Single DMX channel operation
2 rotary push-in dial control panel (Menu | Timer, On/Off | Volume)
5-pin DMX In
PowerCON TRUE1 In
Physical:Dimensions (L x W x H): 11.8″ x 7.7″ x 16.3″ (301mm x 194mm x 414mm)
Weight: 35.3 lbs (16kg)
Electrical / Thermal:AC-120V 50/60Hz 13.5A
Maximum Power Consumption: 1600W
Approvals / Ratings: CE, RoHs, IP33*

Elation FT200 (Antari ANF225)
