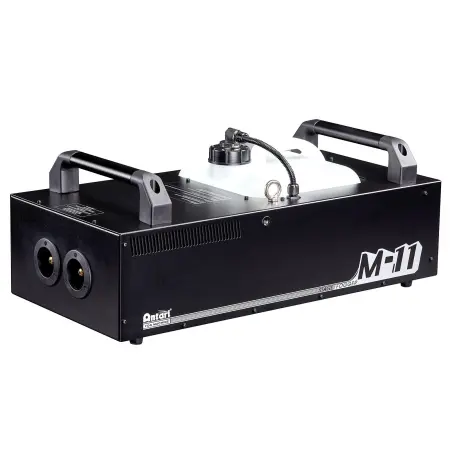

Antari continues to innovate with their first dual output designed M-11 fog machine. The M-11 features a dual output nozzle and dual pump system that can be controlled either independently or simultaneously, allowing for a wider range of volume adjustment and output flexibility. Automatic sequential pump operation can produce endless volumes of fog in continuous mode making the M-11 the highest output fog machine ever created from Antari. The versatile control options include built-in electronic timer, DMX with RDM, stand alone operation, and optional wireless remote. The M-11 is flexible enough to be used in small theaters and powerful enough to be used in the largest arenas.
Antari M-11 Dual Output Stage Fogger Features:
Wireless Receiver compatible with W-2 Wireless Remote.
XLR 3-pin DMX connector.
XLR 5-pin DMX connector.
Neutrik TRUE1 Power.
Two rotary knobs (Timer / Volume.)
Antari M-11 Specifications:
Rated power: 1600W
Warm-up time: 13 minutes (approx)
Fluid consumption: 400 ml/min
Fluid tank capacity: 10 Liters (2.64 gallon)
DMX channels: 1 or 3 channels
Ambient temp.range: 0°C - 40°C (32°F - 104°F)
Input voltage:
US model: AC 100-120V, 50/60Hz 13.3A
EU model: AC 220-240V, 50/60Hz 6.67A
Compatible fluid:
Antari FLG-10 Heavy Fog Fluid
Antari FLR-10 Light Fog Fluid
Control:
Manual, Timer, DMX 512
Wireless (Optional)
Wireless DMX (Optional)
Connection:
Neutrik TRUE 1 Connector(Power)
XLR 3-pin and 5-pin (DMX)
Optional Accessories:
W-DMX-PCBR Wireless DMX
WTR-20 Wireless
WTR-70 Wireless DMX and Remote
WTR-80 Wireless
WTR-90 Wireless DMX
Dimensions:
L 675 x W 320 x H 285 mm
L 26.57 x W 12.6 x H 11.22 inch
Weight: 25 kg (55.1 lbs)
Recommended Fluid:
Antari FLG-4
Alternative Option:
Antari FLH-4
Antari FLZ-4
Antari FLJ-20
Antari FLC-4
