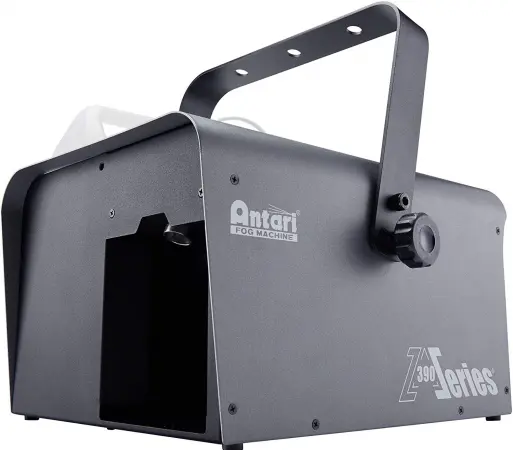

Compare to its predecessor Z-380, the primary improvements and differences can be seen on Z-390 are:
-Z-390 comes with a 4-Liter fluid tank which helps reducing the times of refilling. Better for operations when the machine is rigged up in a higher location where refilling is more time-consuming.
-Due to the larger fluid tank, the Z-390’s body is slightly bigger.
-Z-390’s haze output is raised approximately 30% higher.
Specification
Input voltage
US model : AC 100-120V, 50/60HZ 8.5A
EU model : AC 220-240V, 50/60Hz 6.5A
Rated power
120V 1000 W
240V 1450 W
Warm-up time
1.5 minutes (approx)
Fluid consumption
8 ml/min
Fluid tank capacity
4 Liters (1.06 gallon)
Operating time
8 hrs at max. output
Ambient temp.range
0°C - 40°C (32°F - 104°F)
Control
Manual, DMX 512, Timer
Wireless (Optional)
DMX channels
2 channels
Connection
IEC (Power)
XLR 3-pin and 5-pin (DMX)
Optional Accessories
Z-3 Cable Remote
WTR-20 Wireless Remote
Dimension
L 368 W 277.7 H 267.4 mm
(L 14.49 W 10.93 H 10.53 inch)
Weight
9.45 kg (20.83 lbs)
Recommended Fluid:
Antari FLH-4
Alternative Option:
Antari FLG-4
