Transfix the Audience

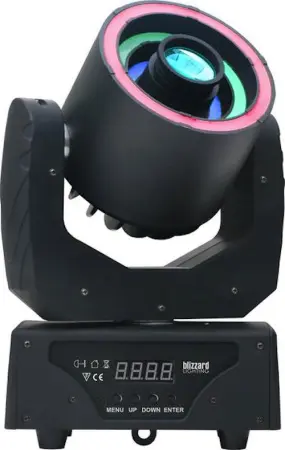

Hypno™ Spot is an LED spot moving head designed to transfix your audience! It comes loaded with a high-output 30W white LED in the center for stunning 4.7° beam effects with a 9 filter color wheel +open and 9 gobos +open. The center LED is surrounded by 3x LED rings that can perform mesmerizing chase effects, single LED chases, full color changes, and strobe.
Loaded with Features
Hypno™ Spot offers two user-selectable DMX modes (12/23-channels) and an easy-to-use 4-button LED control panel. The power connections are industry standard powerCON® compatible In/Out, and it is also equipped with 3-pin DMX In/Out jacks and a quarter-turn “Omega” quick connect type clamp bracket.
Features:
• 4.7° spot effects via 30W white LED, 50,000 hours
• 3x LED rings with 76pcs RGB 3-in-1 SMD5050 LEDs
• Gobo wheel with 9 gobos + open
• Color wheel with 9 colors + open
• Compact and lightweight
• Independent DMX control of beam and LED ring effects
• Pan: 540/630°, Tilt: 200° (8-16 Bit Resolution)
• Built-in auto/sound active programs
• 0-100% linear LED dimmer
• Pan/tilt invert
• 1-25Hz strobe
• User selectable 12/23-channel DMX modes
• Easy-to-use 4-button LED control panel menu
• 3-pin DMX In/Out connections
• powerCON® compatible AC power In/Out
Specifications:
Optical
Light Source: 1x 30W high-output white LED +76* RGB 3-in-1 SMD5050 LEDs (rings)
Beam Angle: 4.7°
CCT = 6500K
Luminous Intensity:
63,163 Lux @ 1M
9,480 Lux @ 2.5M
2,185 Lux @ 5M
Movement
Pan: 540/630° (8-16 bit resolution)
Tilt: 200 degree (8-16 bit resolution)
Weight & Dimensions
Width: 10.5” (265 mm)
Depth: 6.6” (168 mm)
Height: 11.9” (301 mm)
Weight: 11 lbs. (5 kg)
Control
Protocol: USITT DMX-512
12/23-channel DMX modes
Standalone, M/S, Sound Active, Color Preset
3-pin XLR In/Out connections
4-button LCD control panel
Power & Current
100-240VAC, 50-60 Hz
Power Consumption: 84W, 1.11A, PF: .66
Fuse: 2A, 250V
Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs
