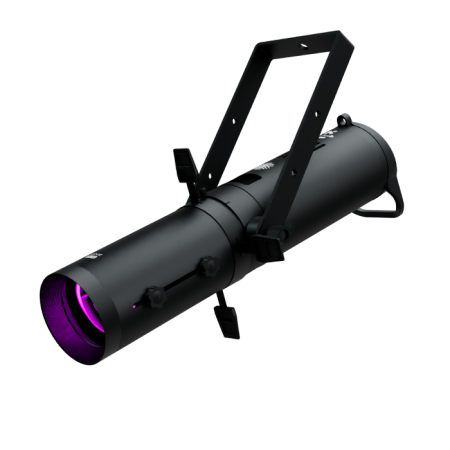

Compact, Full Color Lighting System
The ETL-listed node:b™ RGBAL pairs a high-output 200W LED
light engine with a variety of replaceable lens types to fit many
applications ranging from gobo projection, to typical hard-edged
profile use or even a smooth, vibrantly colored wash. This fixture is
ideal for those in need of flexibility in their lighting.
Modular & Flexible Design
There are 3x lenses available for node:b™ fixtures with the choices
of 15-30° or 25-50° profile zoom lenses with 4-blade manual
shutters and focus, or a 16-65° Fresnel zoom lens. User-selectable
dimming curves, dimming speed, and frequency mode settings are
also accessible from its 4-button OLED control menu.
FEATURES:
200W RGBAL LED light source
Small in size, 10cm fixture diameter
Glass optical lens
High CRI: 90 1-25Hz strobe effects
Adjustable LED refresh rates (1,000-8,000 Hz)
16-bit dimming and 4x dimming curves
Selectable dimming speeds (low, medium, high)
Gobo pattern holder (gobos not included)
Multiple fan settings (full, auto, silent)
Dual mounting brackets for flexible positioning
3-pin male/female XLR input & output
Available with black or white colored housing
SPECIFICATIONS:
Optical
200W RGBAL LED
Glass optical lens
CRI: 90
Flicker-free resolution
Gobo holder: 68.6mm outer, 24mm inner, 0.4mm thickness
dimensions icon
Dimensions
13.4” x 3.94” x 3.94” (34 x 10x 10 cm)
5.3 lbs. (2.4 kg)
control icon
Control
Protocol: DMX, RDM
3-pin DMX in/out
6/9-channels
4-button menu with OLED display
DMX512, master/slave, standalone
Power
power icon
100-240VAC, 50-60 Hz
Consumption: 156W 2.03A, PF: .95
Heavy-duty, fixed power cord
warranty icon
Warranty
2-year limited warranty
cETLus certified
