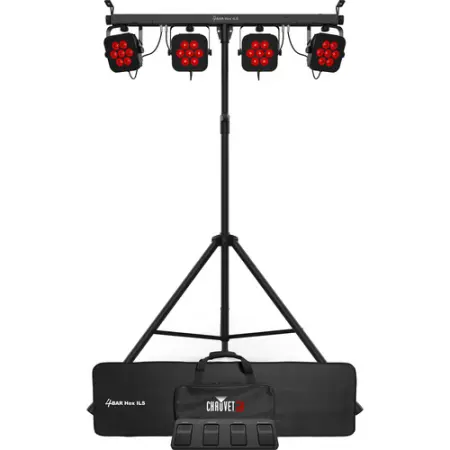

4BAR Hex ILS is a complete wash lighting solution fitted with high-intensity hex-color (RGBAW+UV) LEDs that can be controlled wirelessly right out of the box using the included footswitch or optional IRC-6 remote. ILS compatibility offers ultimate control flexibility and makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology. A tripod and carry bag are included for effortless setup and quick tear down.
FEATURES:
Complete wash lighting solution fitted with high-intensity, hex-color (RGBAW+UV) LEDs
ILS compatibility for use in the ILS ecosystem
D-Fi USB compatibility for wireless Master/Slave or DMX control
Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology
Update the unit’s software from the built-in USB port
Out of the box wireless control with included footswitch or optional IRC-6 controller
Easily set up and tear down in minutes with the included tripod stand and carrying bags
Achieve total room or stage coverage with 4 individually adjustable heads
Increase mounting options by safely mounting to truss using built-in bolts
SPECIFICATONS:
Fixture Type
PAR
Light Source
42x Color LED - 5.1 W / 2 A
Colors
Amber, Blue, Green, Red, Ultraviolet, White
Beam Angle
16°
Control Protocols
DMX512
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 97 W / 1.3 A
230 VAC, 50 Hz: 94 W / 0.7 A
Mounting
Light Stand, M10 Threaded, Tripod Stand & Top Bar
Light
Fixture Type
PAR
Light Source
42x Color LED - 5.1 W / 2 A
Expected Lamp Life
50,000 Hours
Colors
Amber, Blue, Green, Red, Ultraviolet, White
Photometrics
145 fc / 1570 Lux at 6.6' / 2 m (per Fixture)
Beam Angle
16°
Field Angle
25°
Shutter / Strobe
Electronic
Zoom Adjustment
No
Dimming
0 to 100%
Performance
Operating Modes
Automatic, DMX, Program, Sound-Active, Static Color
Macros / Programs
12x Auto-Program
Effects
Color Scroll
Strobe
Strobe Rate
0 to 20 Hz
Gobos
No
Control
Control Protocols
DMX512
DMX Channel Modes
6 / 8 / 27-Channel
Display / Controls
LED / 4-Button
Remote Control
D-Fi, IR Remote (with Included Equipment)
Mobile App Compatible
No
Connectivity
Inputs/Outputs
2 x XLR 3-Pin DMX Input/Output
Wireless
Wi-Fi
*Built-In
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x IEC
Output: None
Power / Current Consumption
120 VAC, 60 Hz: 97 W / 1.3 A
230 VAC, 50 Hz: 94 W / 0.7 A
Power Linking
No
Environmental
Environmental Protection
No
Physical
Mounting
Light Stand, M10 Threaded, Tripod Stand & Top Bar
Included Accessories
1x Tripod Stand
1x Power Cable
1x Case (Light/s)
1x Case (Stand/s)
1x Controller
Included Stand Height
7.4' / 2.3 m
Duty Cycle
No
Exterior Color
Black
Cooling
Convection
Certifications
CE, UKCA
Dimensions
45.7 x 12 x 2" / 116.1 x 30.5 x 5.1 cm (Light)
16.5 x 5.2 x 1.5" / 41.9 x 13.2 x 3.8 cm (Driver)
Weight
12.2 lb / 5.5 kg (Light)
1.2 lb / 0.5 kg (Driver)
Packaging Info
Package Weight
34.5 lb
Box Dimensions (LxWxH)
50.5 x 20 x 7.5"
