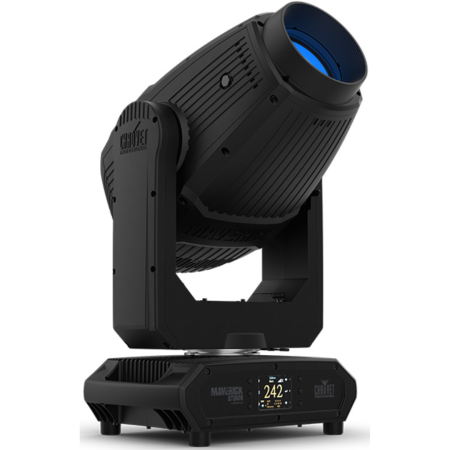

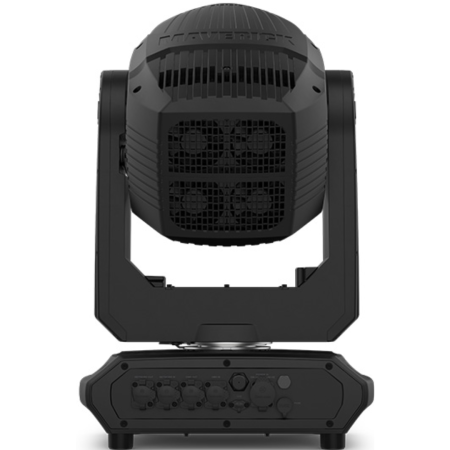

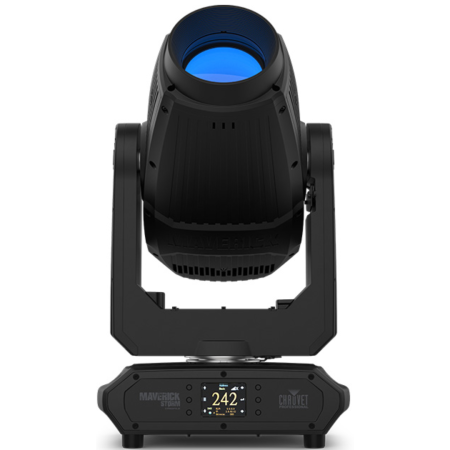

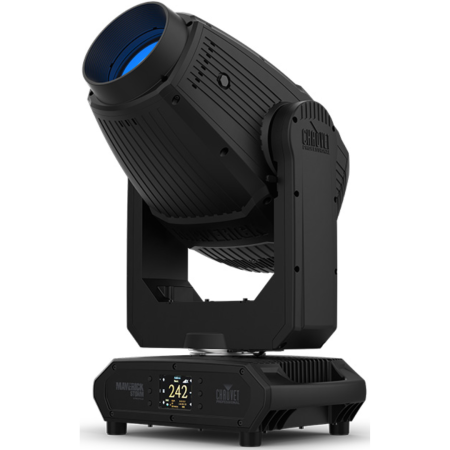

Chauvet Pro Maverick Storm 2 Profile
$8,625.00
Maverick Storm 2 Profile fits a full armory of features into the lightest midsized IP65 moving profile in its division. Drafted to fill designer demand for a double-duty compact powerhouse that combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Sculpt its 28,00 lumens of output with an exquisitely sharp framing shutter system, zoom down to a slicing 5.5 degree beam, and freely create with a wheelhouse that includes variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weathers the storm and welcomes the sunshine with SunShield technology that comes on with complete protection of all internal optical components whenever the fixture powers down.
FEATURES:
Fully featured, compact and lightweight IP65 580 W LED
yoke profi le fi xture including CMY + CTO color mixing,
a 4-blade framing shutter system with rotation, a color
wheel, 10:1 zoom, a 5-facet prism wheel, 1 rotating and 1
static gobo wheel, integrated sun shield
16-bit dimming of master dimmer for smooth control of
fades
Variable CMY + CTO color mixing system to create a
wide pallet of colors
CRI and CTB fi lters on color wheel for added fl exibility
One rotating, indexing and interchangeable slot and lock
gobo wheel
One rotating static gobo wheel
DMX , WDMX, sACN, and Art-Net for full fl exibility of
control options
RDM control over DMX for fi xture reporting
5.5° to 56.5° zoom range for variable beam sizes
Iris, 5-facet prism and frost for beam control
True 1 compatible power input
Integrated sun shield for protecting the optical path from
sunlight when the fi xture is off
Three setup menu presets and preset sync for cross
loading to multiple like fi xtures for easy shop setup
USB slot for software uploads
Battery backup display with auto-rotate depending on
fi xture orientation
SPECIFICATIONS:
OPTICAL
Light Source: 1 LEDs (CW) 580 W, (4.2 A), 7500 K, 50,000
hours life expectancy
Color Temperature (at full): 7268 K
CRI: 71.3
CRI with CRI Filter: 89.8
Front Lens Diameter: 127 mm
Beam Angle: 5.5° to 41.8°
Field Angle: 7.8° to 52.6°
Cutoff Angle 8.3° to 56.5°
Zoom Range: 5.5° to 56.5°
Lumens – Source: 35,000
Lumens – Output: 28,000
Illuminance (6.8°) 65,964 lux @ 5 m
Illuminance (54.8°) 2,588 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz,
15,000 Hz
DYNAMIC EFFECTS
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°,
90° tilt
Colors: 7 (including CRI and CTB fi lters) + white, split
colors, continuous scroll at variable speeds
Colors: CMY fl ags, CTO fl ag
Gobos (1): 7 + open (glass), rotating, interchangeable,
indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 9 + open (glass), continuous scroll at
variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside),
18 mm (image), 1.1 mm (max. thickness)
Framing Shutters: 4 Blades, each with dual axis
movement, Full blackout.
Framing Shutter rotation: +/- 60° rotation.
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4
CONSTRUCTION/PHYSICAL
Dimensions: 9.92 x 15.28 x 27.52 in (252 x 388 x 699 mm)
Weight: 67.0 lb (30.4 kg)
Exterior Color: Black
Housing Material: Aluminum diecast, High-impact flame-
retardant polymer, Steel
CONNECTIONS
Power Connection: Seetronic Powerkon IP65
Power Input/Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated XLR, Neutrik IP rated
RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
DMX Channels: 32 or 48
Art-Net Channels: 32 or 48
Modes/Personalities: 2 personalities (32, 48)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 800 W, 6.82 A @ 120 V, 60 Hz
Power and Current: 779 W, 3.77 A @ 208 V, 60 Hz
Power and Current: 763 W, 3.41 A @ 230 V, 50 Hz
Breaker Size: F15 A, 250 V
WHAT’S INCLUDED
Maverick Storm 2 Profile
Seetronic Powerkon IP65 power cord to Edison
Omega bracket with mounting hardware
OPTIONAL ACCESSORIES
Professional Clamps : CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX Cables
IP Rated Seetronic® Powerkon Extensions
