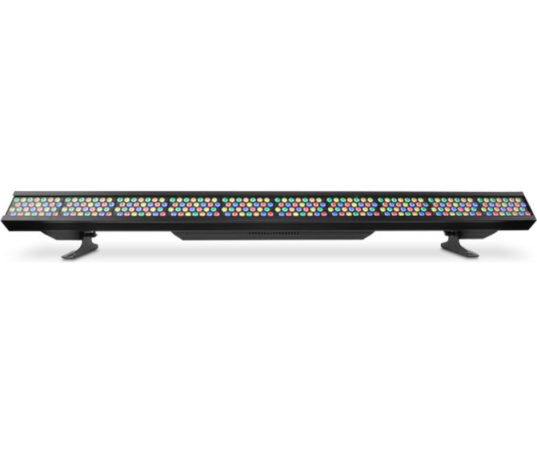

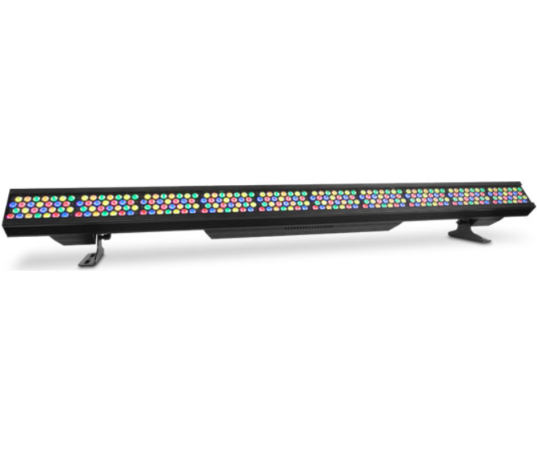

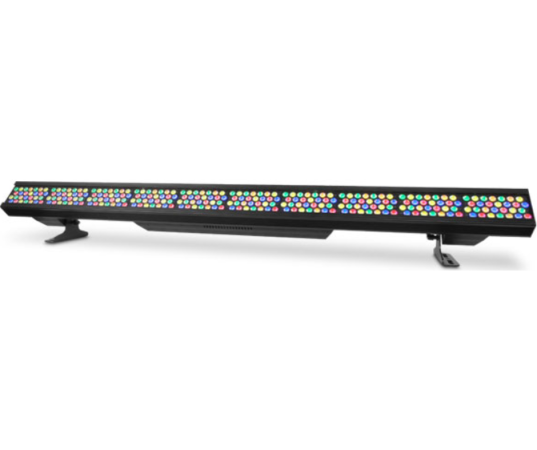

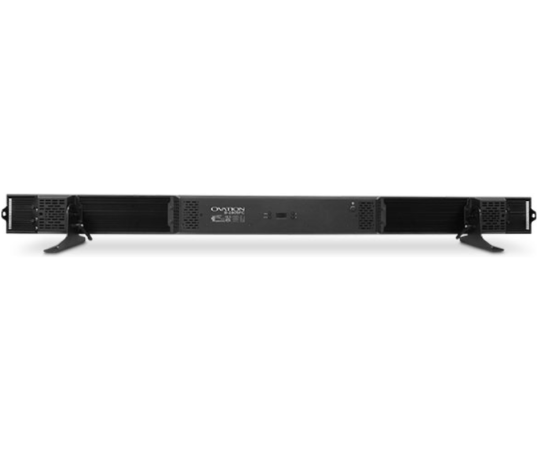

Ovation B-2805FC is the first batten- style fixture to take advantage of the extended color capabilities of the RGBAL color mixing system. Control is easier than ever thanks to the incorporation of RDM, Art-Net™ and sACN in addition to standard DMX control. For maximum flexibility, up to 10 sections can be controlled individually while its easily accessible Virtual Color Wheel and color temperature presets make programming a breeze. An included holographic filter locks into place for enhanced wall/cyc grazing ability.
Features:
Full Color LED (RGBAL) batten fixture for theatre, film and production
Theatre-ready with 16-bit dimming of master dimmer and individual colors
Multiple control personalities for complex programming schemes up to 10 sections of control
Included holographic filter for use in cyc lighting or wall grazing applications for ultra-smooth color mixing
Virtual Color wheel with color matched to popular Rosco Gel colors
Art-Net™, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility
Neutrik® powerCON® and Amphenol etherCON® compatible connections for power and data linking
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Nearly silent operation for use in studio and theatre applications
Specifications:
Optical
Light Source: 280 LEDs (60 red, 60 green, 60 blue, 40 amber,
60 lime) 3 W, (650 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 K to 6500 K
Installed Optics: 20°
Beam Angle (horizontal): 25°
Beam Angle (vertical): 20°
Beam Angle (horizontal w/filter): 52°
Beam Angle (vertical w/filter): 20°
Field Angle (horizontal): 42°
Field Angle (vertical): 40°
Field Angle (horizontal w/filter): 83°
Field Angle (vertical w/filter): 40°
Illuminance: 5,586 lux @ 5 m
Illuminance (w/filter): 2,320 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000
Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 69 x 8.26 x 8.13 in (1,753 x 210 x 207 mm)
Weight: 45.4 lb (20.5 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 68.90 x 3.66 in (1,750 x 93
mm)
Connections
Power Connection: Edison (Local) plug to Neutrik®
powerCON®
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR, Amphenol etherCON®
Compatible Cable Length (power): 5 ft (1.5 m)
Control
Protocol(s): Art-Net™, DMX, RDM, sACN
DMX Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10,
15, 17, 19, 20, 31 - 5 Cell:15, 20, 25, 33, 38, 43, 50, 70 - 10
Cell: 30, 40, 50, 63, 73, 83, 100, 135
Art-Net™ Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8,
10, 15, 17, 19, 20, 31 - 5 Cell:15, 20, 25, 33, 38, 43, 50, 70 - 10
Cell: 30, 40, 50, 63, 73, 83, 100, 135
Modes/Personalities: 32 personalities
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 120 V; 3 units @ 208 V; 4 units @
230 V
Power and Current: 620 W, 5.16 A @ 120 V, 60 Hz
Power and Current: 601W, 2.98 A @ 208 V, 60 Hz
Power and Current: 597 W, 2.76 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
