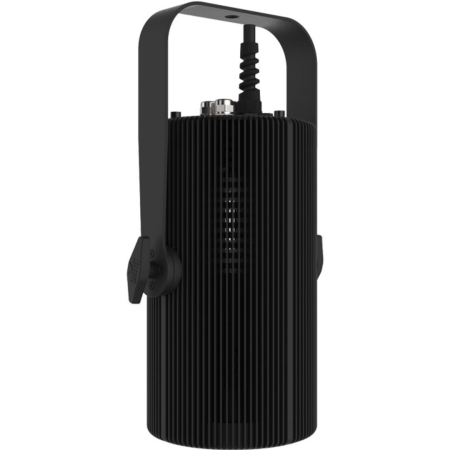

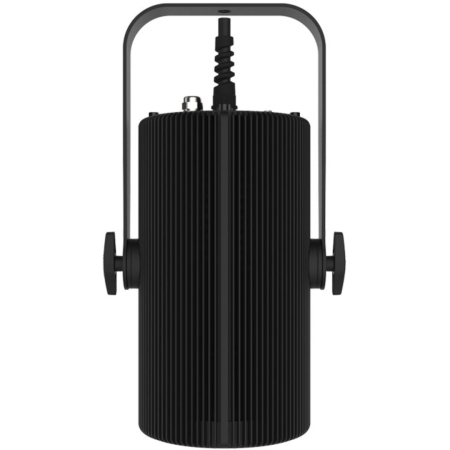

The Chauvet Professional Ovation H-265WW is a silent, convection cooled LED house light. It is ideal for theatres, worship venues and recital halls or any other application where silent operation is crucial. It is lit with a powerful warm white light output and a high CRI. The unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on video capturing. Interchangeable lenses for height adjustment are another indispensable feature in theatrical and house of worship applications. For even more versatility, the yoke can be completely removed, and the fixture suspended, pendant style, from a loop on the back plate. This fixture comes in a white housing.
Includes:
Ovation H-265WW
45° and 25° Lenses
Features:
High-power warm white, convection cooled house light
Interchangeable lens plates to adapt to different mounting heights
5-pin XLR and terminal blocks for DMX connections
Use included yoke for mounting, or suspend from integrated loop-eye
16-bit dimming for ultra-smooth fades
DMX, WDMX and RDM (Remote Device Management) for added programming flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Specifications:
Optical
Light Source: 1 LEDs (WW) 230 W, (2.3 A), 3258 K, 50,000 hours life expectancy
Color Temperature (at full): 3258 K
CRI: 97
Beam Angle (w/65°): 50°
Beam Angle (w/45° lens): 39°
Beam Angle (w/25° lens): 19°
Field Angle (w/65°): 79°
Field Angle (w/45° lens): 69°
Field Angle (w/25° lens): 36°
Lumens (w/65° lens): 8,505
Lumens (w/45° lens): 8,885
Lumens (w/25° lens): 9,139
Illuminance (w/65°): 400 lux @ 5 m
Illuminance (w/45° lens): 623 lux @ 5 m
Illuminance (w/25° lens): 1,933 lux @ 5 m
Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 25 kHz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 13.11 x 9.44 x 13.34 in (333 x 240 x 339mm)
Weight: 17.8 lb (8.1 kg)
Exterior Color: White
Connections
Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 3- and 5-pin XLR, Phoenix connector
Cable Length (power): 15 ft (4.5 m)
Control
Control Protocol: DMX, W-DMX, RDM
DMX Channels: 1, 2 or 5
Modes/Personalities: 3 personalities (1CH, 2CH, 5CH)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 147 W, 1.21 A @ 120 V, 60 Hz
Power and Current: 147 W, .694 A @ 208 V, 60 Hz
Power and Current: 149 W, .641 A @ 230 V, 50 Hz
Breaker Size: T3.15 A, 250 V
Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
