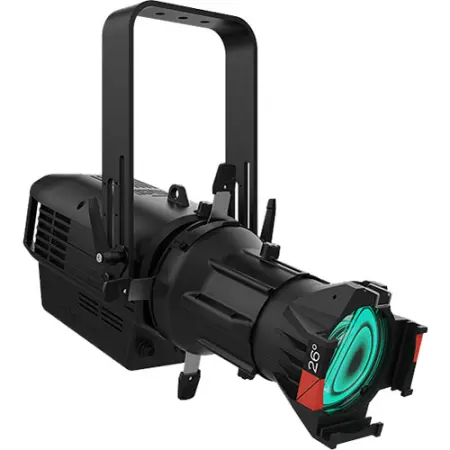

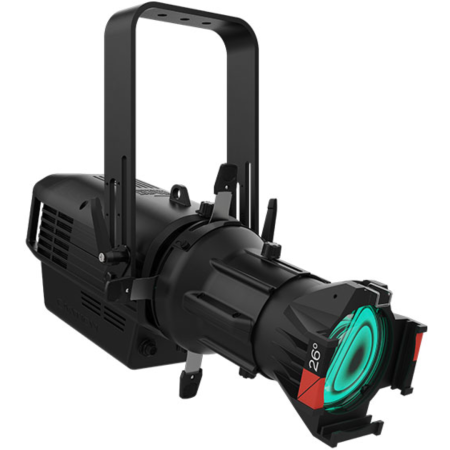

Ovation Rêve E-3
The Ovation Rêve E-3 is an incredibly bright, multi-color LED ellipsoidal that also offers perfectly tunable white light. This innovative LED light source combines the best of both worlds, creating a new standard in storytelling through lighting. It features color temperature presets from 2800K to 8000K, ensuring exceptional brightness and high-quality light, with an emulated “red shift” for a classic tungsten feel. The Ovation Rêve E-3 includes multiple dimming curves, operates virtually silently with fan-off modes, and boasts technician-friendly features like an adjustable yoke for easy mounting in low-clearance areas. With the Ovation Rêve E-3, you can effortlessly switch between vibrant, saturated colors and precise whites with +/- green adjustments using a single fixture. Simply put, it's categorically unrivalLED.
At a Glance
- Full-spectrum LED ERS-style lighting fixture for theatre, film, and production
- Linear color temperature presets from 2800K to 8000K with high CRI and CQS
- Virtual color wheel with colors matched to popular gels
- +/- Green adjustment and emulated red-shift via DMX or onboard control
- RDM (Remote Device Management) for increased flexibility
- Adjustable PWM (Pulse Width Modulation) to prevent flickering on camera
- Virtually silent operation for use in studios, film, and theatre applications
- Ultra-smooth 18-bit dimming curves and speeds to enhance any lighting setup
- Innovative adjustable yoke for mounting in low-clearance areas
- Direct power/data connection and control options for the Ovation GR-1 gobo rotator
- USB port for fixture software updates
Specifications
Optical
- Light Source: 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy (L70)
- Color Temperature (range): 2800 to 8000 K
- Color Temperature (at full): 5470K
- CRI (3200 K): 95.4
- Beam Angle (w/5° lens): 4.6°
- Beam Angle (w/10° lens): 10°
- Beam Angle (w/14° lens): 14.8°
- Beam Angle (w/19° lens): 18.5°
- Beam Angle (w/26° lens): 26°
- Beam Angle (w/36° lens): 33.3°
- Beam Angle (w/50° lens): 49.5°
- Beam Angle (w/15°–30° lens)(Narrow): 13°
- Beam Angle (w/15°–30° lens)(Wide): 28.5°
- Beam Angle (w/25°–50° lens)(Narrow): 23.6°
- Beam Angle (w/25°–50° lens)(Wide): 40.5°
- Field Angle (w/5° lens): 5.6°
- Field Angle (w/10° lens): 11.1°
- Field Angle (w/14° lens): 16°
- Field Angle (w/19° lens): 21.6°
- Field Angle (w/26° lens): 29.6°
- Field Angle (w/36° lens): 37.1°
- Field Angle (w/50° lens): 55.7°
- Field Angle (w/15°–30° lens)(Narrow): 15.4°
- Field Angle (w/15°–30° lens)(Wide): 32.2°
- Field Angle (w/25°–50° lens)(Narrow): 25.8°
- Field Angle (w/25°–50° lens)(Wide): 44.1°
- Lumens (w/5° lens): 5,076
- Lumens (w/10° lens): 11,250
- Lumens (w/14° lens): 12,179
- Lumens (w/19° lens): 12,156
- Lumens (w/26° lens): 13,300
- Lumens (w/36° lens): 13,223
- Lumens (w/50° lens): 12,216
- Lumens (w/15°–30° lens): 12,057
- Lumens (w/25°–50° lens): 14,355
- Illuminance (w/5° lens): 31,856 lux @ 5 m
- Illuminance (w/10° lens): 18,924 lux @ 5 m
- Illuminance (w/14° lens): 9,284 lux @ 5 m
- Illuminance (w/19° lens): 5,635 lux @ 5 m
- Illuminance (w/26° lens): 3,378 lux @ 5 m
- Illuminance (w/36° lens): 2,085 lux @ 5 m
- Illuminance (w/50° lens): 870 lux @ 5 m
- Illuminance (w/15°–30° lens)(Narrow): 9,292 lux @ 5 m
- Illuminance (w/15°–30° lens)(Wide): 2,671 lux @ 5 m
- Illuminance (w/25°–50° lens)(Narrow): 3,710 lux @ 5 m
- Illuminance (w/25°–50° lens)(Wide): 1,527 lux @ 5 m
- Barrel Rotation: +/- 25°
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Focus: Manual
- Strobe Rate: 0 to 30 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions (fixture only, yoke up): 20.44 x 13.07 x 20.53 in (519 x 332 x 522 mm)
- Dimensions (w/5° lens extended, yoke up): 41.60 x 14.17 x 21.42 in (1056 x 360 x 544 mm)
- Dimensions (w/10° lens extended, yoke up): 32.87 x 13.07 x 20.01 in (835 x 332 x 510 mm)
- Dimensions (w/14° lens extended, yoke up): 29.7 x 13.07 x 20.53 in (755 x 332 x 522 mm)
- Dimensions (w/19°, 26°, 36° or 50° lens extended, yoke up): 26.83 x 13.07 x 20.53 in (681 x 332 x 522 mm)
- Dimensions (w/15°–30° lens, yoke up): 33.02 x 13.52 x 20.53 in (839 x 343 x 522 mm)
- Dimensions (w/25°
Chauvet OVATION REVE E3
(Chauvet Pro Ovation Rêve E3)
