Compact LED Moving Spot Light

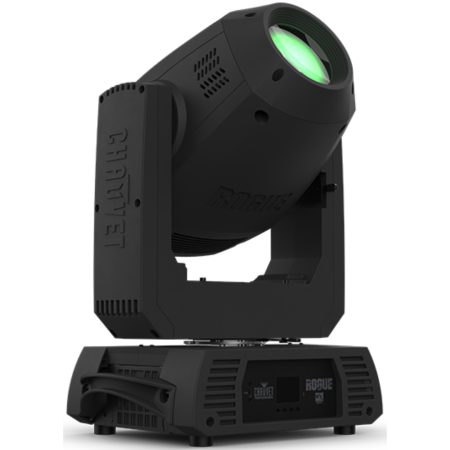

Chauvet Pro Rogue R1E Spot is a compact, lightweight moving head spot fixture designed to deliver exceptional performance in small to mid-sized lighting rigs. Powered by a 200W cool white LED engine, this versatile fixture offers rich features including dual gobo wheels, a rotating 3-facet prism, motorized frost and iris, and eight vibrant colors—all in a road-ready package with smooth 16-bit dimming and precision movement.
Chauvet Pro Rogue R1E Spot Competitive Differences
- Dual gobo wheels for morphing and layered effects
- Selectable LED output for matching legacy Rogue R1X fixtures
Chauvet Pro Rogue R1E Spot Description
The
Rogue R1E Spot provides powerful spot lighting capabilities with a feature set typically found in larger, more expensive fixtures. With its 200W LED source delivering 12,210 lumens of output, this unit projects crisp, vivid images with a 15.3° beam angle—ideal for gobo projection and mid-air effects.
A standout feature is the inclusion of two gobo wheels: one rotating, slot-n-lock wheel with interchangeable gobos, and one static scrolling wheel, allowing morphing between patterns for creative flexibility. The rotating 3-facet prism adds depth to beams, while the motorized frost and iris give designers full control over beam shaping and softness.
This fixture is also optimized for camera use, with selectable PWM frequencies up to 15,000 Hz and two DMX personalities (16 or 19 channels) to fit any programming environment. With rugged build quality, RDM capability, and power linking via Seetronic PowerKon, the Rogue R1E Spot is a tour-ready solution for concerts, corporate events, houses of worship, and broadcast applications.
Model Features
- 200W cool white LED light engine (7423K)
- Dual gobo wheels: 1 rotating/interchangeable, 1 static
- 3-facet rotating prism for dynamic beam effects
- Motorized iris and frost for beam shaping
- Color wheel with 8 colors + white + split colors
- Selectable LED output to match R1X fixtures
- Selectable PWM up to 15,000 Hz for flicker-free video
- 16-bit master dimming for smooth fades
Model Specifications
- Light Source: 1x 200W CW LED (7423K)
- Beam Angle: 15.3° | Field Angle: 18.7°
- Lumens: 17,900 (source), 12,210 (output)
- Illuminance: 9,021 lux @ 5m
- Pan/Tilt: 540° / 270° (selectable ranges)
- Gobo Size (Rotating): 20 mm outer, 16 mm image
- Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
- Power Consumption: 315 W max
- Dimensions: 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)
- Weight: 31.2 lb (14.2 kg)
- Control: DMX (16 or 19 channels), RDM
- IP Rating: IP20 (indoor use only)
- Certifications: CE, MET, FCC, UKCA
What's In The Box
- Rogue R1E Spot fixture
- Seetronic PowerKon power cord
- 2x 140D Omega brackets with mounting hardware
Chauvet Professional ROGUE R1E Spot
(Chauvet Pro Rogue R1E)
