LED Moving Head Spot Fixture

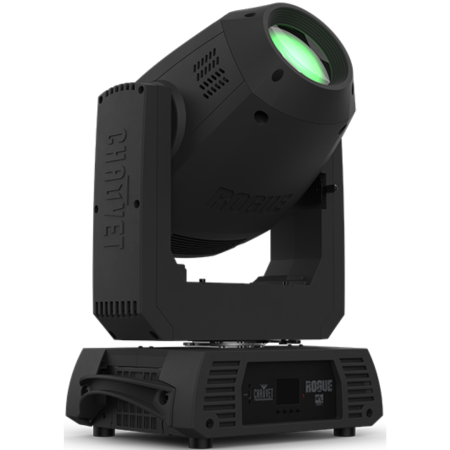

Chauvet Pro Rogue R2E Spot is a compact and fully featured 350W LED moving head spot built for touring rigs, production houses, and event professionals. Designed for creative versatility and unmatched beam control, it features dual gobo and color wheels, motorized effects, and advanced dimming to handle both dynamic aerials and crisp projections with precision.
Chauvet Pro Rogue R2E Spot Competitive Differences
- Dual color and gobo wheels for smooth morphing and complex beam effects
- Selectable max output to match legacy Rogue R2X Spots
Chauvet Pro Rogue R2E Spot Description
The
Chauvet Pro Rogue R2E Spot offers a powerful 350W LED engine pushing 24,500 source lumens and over 16,000 lumens output through a high-quality 90mm lens. Its 15.9° beam angle ensures sharp gobo projections, while motorized zoom, iris, frost, and a 3-facet rotating prism allow for expansive beam shaping and textural effects on stage or set.
Its dual gobo system includes a rotating wheel with 7 interchangeable gobos and a fixed scrolling wheel, enabling gobo morphing and layered looks. Two color wheels offer 8 colors each plus white, with split-color and scroll effects for dynamic design. Selectable PWM settings up to 15,000Hz ensure flicker-free performance for camera-critical environments.
Control options include 19 or 22 DMX channels, RDM for remote addressing, and a user-friendly interface for quick configuration. The lightweight design (just over 31 lbs) and PowerKon connections make it ideal for installations or fast-paced touring. Whether used for crisp projection, vivid beam effects, or atmospheric visuals, the R2E Spot excels in versatility and output.
Model Features
- 350W LED engine (7057K) with 16,345 lumen output
- Dual color wheels with split colors and continuous scroll
- Dual gobo wheels (1 rotating, 1 static) with scroll and morphing
- Motorized iris, frost, 3-facet prism, and focus
- Selectable LED output to match Rogue R2X Spot units
- Selectable PWM rates up to 15,000 Hz for flicker-free camera use
- DMX and RDM control with 19- or 22-channel personalities
Model Specifications
- Beam Angle: 15.9° | Field Angle: 18.1° | Cutoff Angle: 20.3°
- Lumens (Source): 24,500 | Output: 16,345
- CRI: 70.4 | CRI with filter: 90
- Pan/Tilt: 540° / 270°
- Dimensions: 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)
- Weight: 31.2 lb (14.2 kg)
- Power: 100–240V AC | Max Draw: 481W @ 120V
What's In The Box
- Rogue R2E Spot fixture
- Neutrik PowerKon power cable
- 2x Omega brackets with mounting hardware
Chauvet Professional ROUGE R2E SPOT
(Chauvet Pro Rogue R2E)
