Variable White LED Wash Fixture

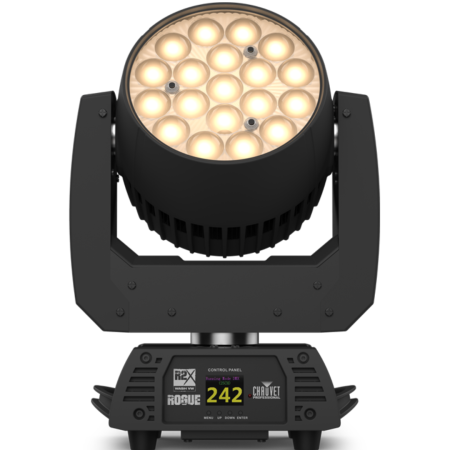

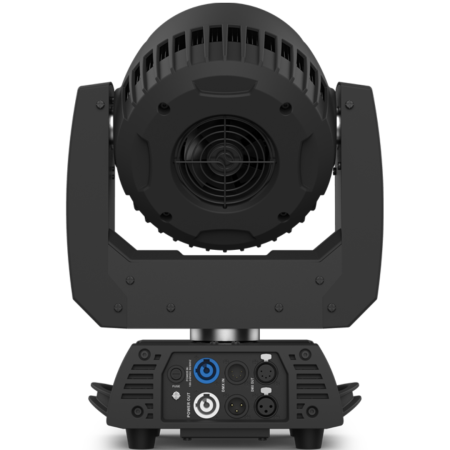

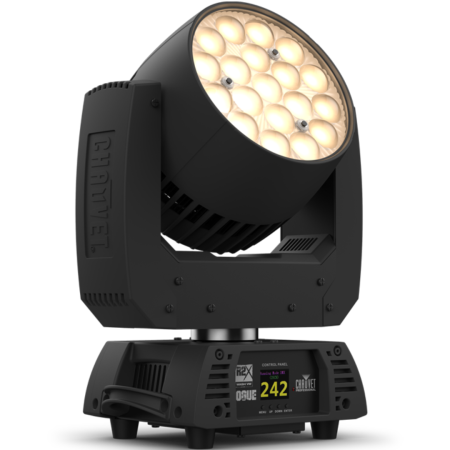

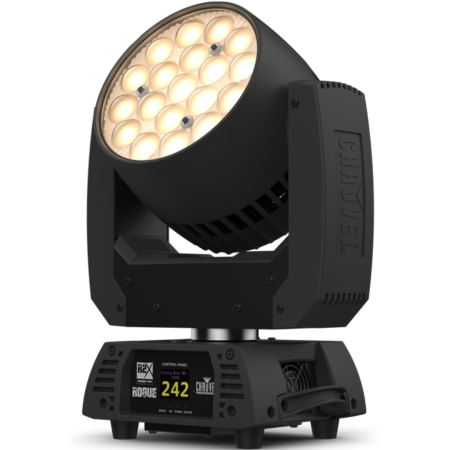

Chauvet Pro Rogue R2X Wash VW is a high-performance variable white LED wash designed for precision, versatility, and smooth color temperature control. Featuring 19 powerful 25W CW and WW LEDs and five independently controllable LED zones, it’s the ultimate solution for applications where white balance and tunable white light are critical—such as broadcast studios, exhibition halls, and theatres.
Chauvet Pro Rogue R2X Wash VW Competitive Differences
- Variable white output from 2600K to 6075K with built-in presets
- Five-zone LED pixel control and motorized zoom (8.2° to 63°)
Chauvet Pro Rogue R2X Wash VW Description
The
Chauvet Pro Rogue R2X Wash VW is engineered to meet the demanding requirements of professional lighting designers. With 19 variable white (cool + warm) 25W LEDs and selectable PWM frequencies up to 15,000 Hz, it ensures flicker-free operation on camera, making it ideal for video and broadcast environments.
The fixture offers smooth 16-bit dimming of both the master and individual LEDs, enhanced by six selectable dimming curves for flexible creative control. Its wide zoom range from a tight 8.2° beam to a broad 63° wash provides excellent adaptability for any venue size or throw distance. Integrated zone control enables pixel-mapping effects, while built-in color temperature presets allow quick matching to ambient or camera lighting conditions.
Control options include multiple DMX personalities (15 to 36 channels), RDM support for remote addressing and diagnostics, and an intuitive OLED display for direct menu access. Rugged yet lightweight, the Rogue R2X Wash VW includes an omega bracket for fast rigging and is built with a flame-retardant polymer housing for professional durability.
Model Features
- 19x 25W variable white LEDs (CW & WW)
- Color temperature range: 2600K to 6075K
- Motorized zoom: 8.2° to 63° beam spread
- Five independently controlled LED zones for pixel mapping
- 16-bit dimming with 6 selectable dimming curves
- Built-in presets for quick white balance selection
- DMX and RDM control with 7 channel profiles (15–36CH)
- OLED display with simple navigation menu
Model Specifications
- Max Output: 10,918 lumens
- Beam Angle: 8°–34.4° | Field Angle: 11.3°–50.4° | Cutoff: 17.1°–63°
- Pan/Tilt: 540° / 230° (motorized)
- Dimensions: 15.67 x 12.05 x 8.58 in (398 x 306 x 218 mm)
- Weight: 22.8 lb (10.3 kg)
- Power: 100–240V AC | Max Draw: 339W @ 230V
What's In The Box
- Rogue R2X Wash VW fixture
- Neutrik® powerCON® power cord
- Omega bracket with mounting hardware
Chauvet Rogue R2 X VW Wash
(Chauvet Pro R2X-VW Rogue Wash)
