Advanced DMX Lighting Console

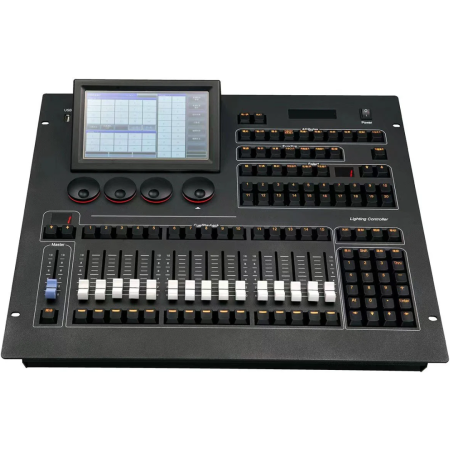

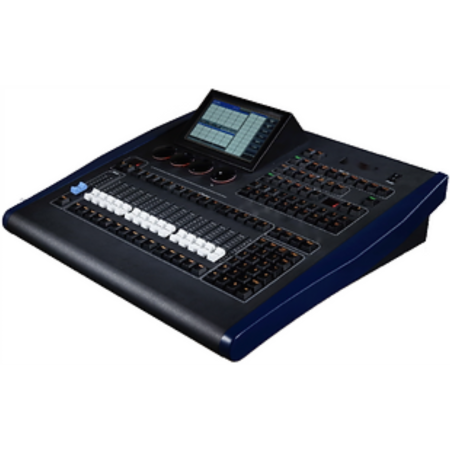

Crisp EMPOWERER MINI2 is a next-generation lighting controller offering 1024 DMX channels, dual optical-isolated outputs, and full Art-Net integration. Designed for medium to large-scale productions, it combines powerful programming tools, intuitive touchscreen operation, and extensive fixture compatibility for maximum control and flexibility.
Crisp EMPOWERER MINI2 Competitive Differences
- 1024 DMX Channels with Dual Optical-Isolated Outputs + Art-Net
- 600 Playbacks, 400 Presets, and Touchscreen Control
Crisp EMPOWERER MINI2 Description
The
Crisp EMPOWERER MINI2 is built for professional lighting designers seeking precision, power, and speed in a compact form. With 1024 DMX channels split across two individually isolated outputs and Art-Net networking, it supports a wide range of fixture types and control topologies—ideal for concert stages, theaters, broadcast setups, and complex event environments.
A 7-inch TFT touchscreen with multi-color backlit keys and encoders provides an intuitive, low-light-friendly interface. The console offers deep customization through 600 programmable playbacks and 400 presets across 15 faders and 40 pages, allowing simultaneous control of intricate lighting scenes.
Advanced tools like the color-mix palette (RGB/CMY) and customizable shape generator give designers total creative freedom. MIDI in/out, internal and USB backup options, and R20 fixture profile support round out a robust system designed for demanding production environments.
Up to 400 groups, macro shows, and user-defined effects can be saved and triggered via internal clock or external MIDI timecode—making the EMPOWERER MINI2 a complete, standalone control solution for dynamic lighting control.
Model Features
- 1024 DMX Channels via 2 Isolated Outputs + Art-Net Interface
- 7" TFT-LCD Touchscreen with Custom Backlit Keys
- 600 Playbacks with 15 Faders × 40 Pages
- 400 Presets, 400 Groups, and 400 Macro Shows
- Custom Shape Generator and RGB/CMY Color-Mix System
- MIDI In/Out with Timecode Support
- Internal Electronic Disk + USB Backup Options
- Compatible with R20 Fixture Profiles and 8000+ Library Entries
Model Specifications
- DMX Channels: 1024
- DMX Outputs: 2 Optical-Isolated Ports + Art-Net
- Touchscreen: 7" TFT LCD
- Playback Capacity: 600 Playbacks, 15 Faders × 40 Pages
- Presets: 400
- Groups: 400
- Shape Effects: 400 User-Defined
- Macro Shows: 400 with Internal Clock or MIDI Trigger
- MIDI: In/Out Interfaces
- Backup: USB and Internal Electronic Disk
- Fixture Library: 8000+ Entries, R20 Compatible
- Power Supply: AC 100–240V, 50–60Hz
- Dimensions: 21.3 × 18.9 × 7.1 in (540 × 480 × 180 mm)
- Weight: Approx. 22 lb (10 kg)
What's In The Box
- Crisp EMPOWERER MINI2 Controller
- Power Cable
- User Manual
Crisp Empowerer Mini 2
(Crisp SPL-KT-IEM2)
