High-Powered 21-Inch Subwoofer with DSP and Extended Bass Response
The

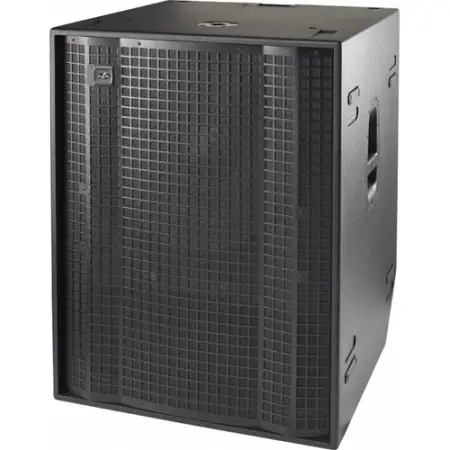

D.A.S. Audio Event-121A is a robust, powered subwoofer system featuring a 21-inch direct-radiating, rear-loaded design. Engineered to deliver deep, powerful bass, it complements the Event line array series, making it ideal for pro audio applications like rental houses, bars, clubs, and mobile DJs.
D.A.S. Audio Event-121A Competitive Differences
- 3200W peak Class-D amplifier for impactful bass performance
- 21" DAS 21LFN neodymium woofer for extended low-frequency response
- Frequency response from 30 Hz to 125 Hz for deep, powerful bass
- Cardioid mode for reduced rear sound output, minimizing stage noise
- Durable birch plywood enclosure with ISO-flex paint for long-lasting durability
- Top-mounted 35mm pole socket for easy integration with full-range speakers
- Rear wheels and multiple handles for convenient transport and setup
D.A.S. Audio Event-121A Description
The
D.A.S. Audio Event-121A is designed to provide professional-grade bass reinforcement for live events and installations. Powered by a 3200W peak Class-D amplifier, this subwoofer drives a 21-inch DAS 21LFN woofer, delivering low-end frequencies from 30 Hz to 125 Hz with a peak SPL of 141 dB. Its direct-radiating, rear-loaded design ensures accurate bass reproduction, making it perfect for medium to large venues.

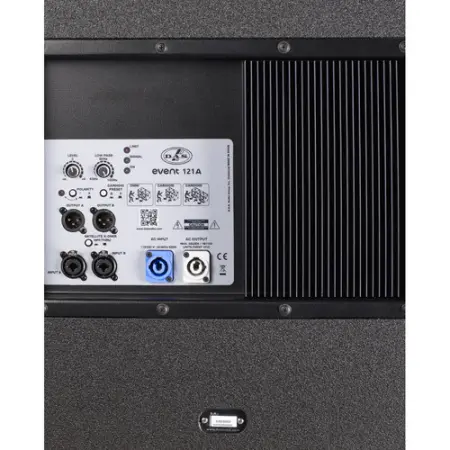

The integrated DSP, accessible through the
DAScontrolâ„¢ interface, allows for precise adjustment of low-pass filter settings (63 to 100 Hz), level control, and polarity. The cardioid switch is particularly useful when deploying multiple subwoofers, reducing unwanted low-frequency energy behind the system. With two XLR inputs and loop-thru outputs, the Event-121A easily integrates into larger audio setups. Its robust birch plywood enclosure, coated in ISO-flex paint, is designed for durability, while built-in handles and wheels make transportation easy.
Event-121A Features
- 21" DAS 21LFN neodymium woofer for powerful, deep bass
- 3200W peak Class-D amplifier (1600W continuous)
- Digital signal processing (DSP) with adjustable low-pass filter
- Cardioid mode for controlled bass output in multi-sub setups
- Stereo XLR inputs and loop-thru outputs for easy system integration
- Top-mounted 35mm pole socket for full-range speaker support
- Rugged birch plywood construction with durable ISO-flex finish
- Built-in wheels and ergonomic handles for easy transport
Event-121A Specifications
- Configuration: Active Subwoofer, Direct Radiating, Rear-Loaded
- Amplifier Power: 3200W Peak (1600W Continuous)
- Frequency Range (-10 dB): 30 Hz to 125 Hz
- Maximum Peak SPL: 141 dB at 1 m
- Input Sensitivity: +18 dBu
- Input Impedance: 20 kΩ Balanced
- Audio Inputs:
- 2 x XLR 3-Pin Female Balanced Line Input
- 2 x XLR 3-Pin Male Balanced Loop Thru/Output
- Control: DAScontrolâ„¢ for DSP adjustments
- Power Requirements: 90-250 VAC, 50/60 Hz
- Power Draw: 7.2 A (120 V) / 3.6 A (230 V)
- Enclosure: Birch Plywood with ISO-flex Paint
- Dimensions: 37.8 x 29.7 x 29.1 in (960.1 x 754.4 x 739.1 mm)
- Weight: 165 lb (74.8 kg)
- Mounting: 35mm Pole Socket, M10 Rigging Points
- Handles: 1 x Each Side, 1 x Top
- Wheels: Rear-located for easy transport
What's In The Box
- D.A.S. Audio Event-121A Powered 21" Subwoofer
- powerCon Power Cord
- Limited 2-Year Warranty
- User Manual
