LED Moving Head Light with Framing, CMY Color Mixing and Mid-Air Effects
The
Elation FUZE PFX is a high-output 400W LED profile FX fixture built for stage, theater and production environments that require precision beam shaping, powerful color mixing and dynamic effects. It delivers over 15,000 lumens, a zoom range from 3° to 53°, and includes a wide feature set for maximum versatility in a compact housing.
Elation FUZE PFX Competitive Differences
- 400W 6,600K white LED engine with 20,000-hour average lifespan
- Over 15,000 lumen total fixture output
- 3° to 53° motorized zoom range for tight beams and wide washes
- Full blackout 4-blade framing system with ±60° indexing
- Seamless CMY color mixing with linear CTO and 8-position color wheel
- High CRI filter options (CRI 80 and CRI 90)
- 18 gobos total: 7 rotating and indexing glass gobos plus 11 static metal gobos
- Dual independent rotating prisms with overlay capabilities
- Variable frost filters for light and wash diffusion
- Comprehensive protocol support including DMX, Art-Net, sACN and RDM
- Aria x2 wireless device management and USB firmware updates
Elation FUZE PFX Description
The
FUZE PFX is designed for professionals who need an advanced framing FX fixture that delivers precision and creative flexibility. Its powerful 400W LED engine produces high-impact white light with excellent beam quality. The integrated CMY color mixing, linear CTO and high CRI filter options make it a strong choice for both vivid effects and applications requiring natural color rendering.
The fixture includes a full framing shutter system with four blades that can fully blackout and index ±60°, ideal for shaping beams on stage or isolating subjects. Its wide zoom range enables everything from narrow spot effects to even field washes. A comprehensive gobo library and dual prisms support layered mid-air visuals, while frost filters provide additional flexibility between hard-edged and soft beam looks.
Control options are extensive, with support for DMX, Art-Net, sACN and RDM. The fixture also includes Aria x2 wireless device management for advanced remote configuration. With its compact size, high output and broad feature set, the FUZE PFX is a reliable and creative tool for lighting designers working in live production, broadcast or installation environments.
FUZE PFX Features
- 400W 6,600K white LED engine
- Over 15,000 lumen fixture output
- Motorized zoom range from 3° to 53°
- 4 full blackout framing blades with ±60° indexing
- Dual frost filters: light frost and wash frost
- Dual rotating prisms: 6-facet linear and 6-facet round
- Motorized iris for beam control
- High-speed electronic shutter and strobe
- Variable 16-bit dimming curves
- Pan range: 540°, Tilt range: 270°
- CMY color mixing with linear CTO correction
- 8-position dichroic color wheel including UV filter
- High CRI filters for 80 and 90 CRI options
- 7 rotating and indexing glass gobos
- 11 static metal gobos
- 16-bit pan, tilt and dimming control
- DMX, Art-Net, sACN and RDM control protocols
- Aria x2 wireless device management
- 180° reversible full-color LCD menu with 4-button control panel
- Locking 5-pin XLR in and out
- Locking RJ45 Ethernet in and out
- IP65 locking power connector in and out
- USB port for firmware updates
FUZE PFX Specifications
- Light Source: 400W 6,600K white LED
- LED Life: 20,000 hours average (lab tested)
- Total Output: 15,000 lumens
- CRI: 72 standard, CRI 80 and CRI 90 filters included
- Zoom Range: 3° to 53°
- Pan: 540°, Tilt: 270°
- Power Consumption: 600W maximum
- AC Input: 100 to 240V AC, 50/60Hz
- Heat Output: 2047 BTU per hour (±10%)
- Operating Temperature: 14°F to 113°F (–10°C to 45°C)
- Certifications: CE, cETLus, FCC, UKCA
- IP Rating: IP20 indoor use only
- Product Dimensions (L x W x H): 14.3 in x 9.2 in x 25.14 in (362 mm x 233 mm x 637 mm)
- Product Weight: 50 lb (22.7 kg)

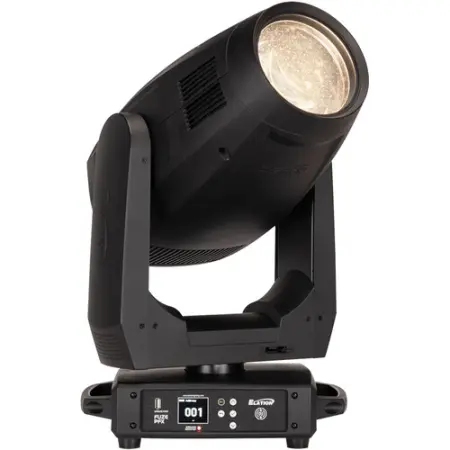

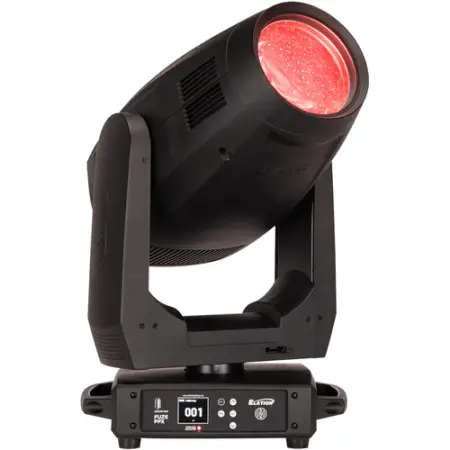

Elation Lighting FUZE PFX
(Elation FUZE PFX Black)
