Elation SEVEN BATTEN 42
$3,300.00

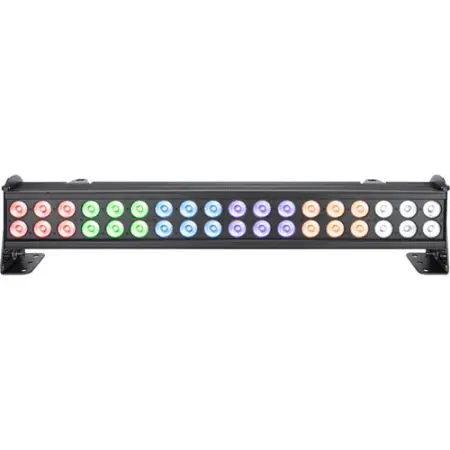

The SEVEN Batten 42™ from Elation is a seven color 3.5 foot (1 m) long batten wash luminaire with (36) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Some of the features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 2 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes.
The SEVEN Batten 42 comes with an adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM. Connections on this fixture include 3/5pin DMX, RJ45 etherCON, and power in/out connections. With a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot. Other highlights include a 220° manual tilt adjustable mounting bracket, OLED menu display with a 4-button control panel, and a multi-voltage universal auto switching power supply (100-240v).
Features:
Individual Hue, Saturation, and Intensity Control
Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)
Smooth Color Mixing, Internal Programs with Speed and Fade Control
64 Unique 7-Color Macros
Selectable 16-bit Dimming Curve Modes
Adjustable LED Refresh Rate + Gamma Brightness
Flicker Free Operation for TV and FILM
Art-Net, Kling-Net, and RDM Protocol Support
Dual 220° Manual Tilt Adjustable Mounting Bracket
Rugged Powder Coated Die-Cast Aluminum Exterior
Integrated Gel / Frost Filter Slot
Specifications:
(36) 25W 7-IN-1 RGBAW + Lime + UV LEDs
50,000 Hour Average LED Life
Effects
Individual Hue, Saturation, and Intensity Control
Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
6 Pixel Mapping Zones with Pixel Flip Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable 16-bit Dimming Curve Mode
Color: RGBAW + Lime + UV (395nm)
Control/Connections
10 DMX Channel Modes (50 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900-28,800 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
Art-Net, Kling-Net, and RDM Remote Device Management) Protocol Support
3/5pin DMX, RJ45 etherCON, and Power In/Out
With Wired Digital Communication Network
Electrical/Thermal
AC 100-240V - 50/60Hz
614 W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
Approvals/Ratings: CE | cETLus | IP20
Dimensions: 42" x 4.5" x 9"
Weight: 39.0 lbs. (17.7kg)
