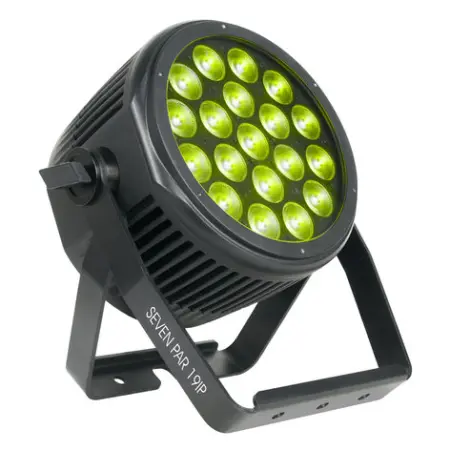

Elation SEVEN PAR 19IP
$960.00
Elation's SEVEN PAR 19IP™ is a par wash luminaire with (19) individual 25W 7-in-1 RGBAW plus Lime LED's along with UV. This fixture is manual and DMX controllable, and features smooth color mixing, variable dimming curve, strobe, and color macro effects, along with an adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM.
The SEVEN PAR 19IP is equipped with IP rated 5-pin DMX and powerCON TRUE1 in/out connections, offers RDM (Remote Device Management) support, and has an on-board OLED menu display with (4) touch button control panel. Also included is a multi-voltage universal auto switching power supply (100-240V) and dual mounting yokes.
Features:
IP65 outdoor rated
Rugged die-cast aluminum exterior
Seven colors RGBWA + Lime + UV (395nm)
RGB + dynamic amber channel modes
Smooth color mixing
12 internal programs with speed and fade control
64 color macros
Selectable dimming curve modes
Adjustable LED refresh rate + gamma brightness
Flicker free operation for TV and FILM
Dual yoke / floor stand
Multiple unit power linking
Optional gel frames and barn doors are available
Specifications:
Source:
(19) 25W 7-in-1 RGBAW + Lime + UV LEDs
50,000 hour average LED life (May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming)
Effects:
Dynamic amber (automatically added to RGB LEDs in Dynamic (+) DMX modes)
12 program macros with variable speed and fade control
64 color macros
Electronic strobe and variable effects
Selectable dimming curve effects
Adjustable LED refresh rate and gamma brightness
Color:
RGBAW + Lime + UV (395nm)
Control / Connections:
(8) DMX channel modes (15 total channels)
DMX and manual control
4 button OLED menu control display
Adjustable refresh rate (900-28,800 Hz)
Adjustable gamma brightness (2.0, 2.2, 2.4, 2.8)
RDM (Remote Device Management) protocol support
IP rated 5-pin DMX In/Out
powerCON TRUE1 Power In/Out
Physical:
Dimensions (LxWxH): 16.4" x 11.2" x 25.4" (416 x 284 x 645 mm)
Weight: 56 lbs (25.4 kg)
Electrical / Thermal:
AC 100-240 V - 50/60 Hz
500 W max power consumption
5° F to 113° F (-15° C to 45° C)
