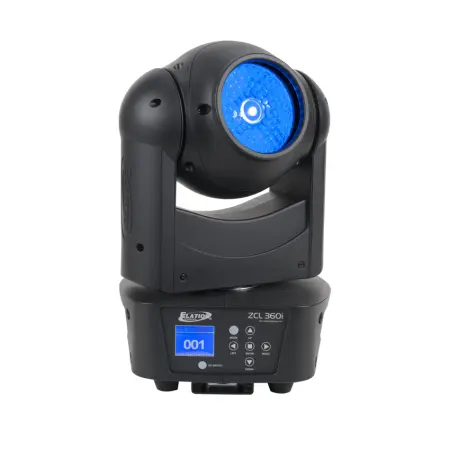

The ZCL 360i™ is a powerful single beam moving effect luminaire with zoom featuring a single 90W RGBW 4-in-1 LED and the new advanced collimator optic lens, which produces a laser-like homogenized 4° color-changing beam. Features 4° to 44° motorized zoom, fast and precise16-bit continuous full 360° pan and tilt rotation, electronic strobe, dimmer, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™, and Art-NET support, 5pin XLR, RJ45 ethernet, and IP65 Locking Power Cable in/out connections, (7) button control full color 180° reversible menu display, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).
Features:
Powerful 4° Single Beam Moving Effect Luminaire with Zoom
90W RGBW 4-in-1 LED
4° to 44° Motorized Zoom
New Advanced Collimator Optic Lens
Laser-Like Homogenized Color Changing Beam
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Flicker Free Operation for Broadcast TV and FILM
Specifications:
SOURCE
90W RGBW 4-in-1 LED
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
11,123 LUX 1,033 FC @9.8’ (3m) (4° Min Zoom) Full ON
483 LUX 45 FC @9.8’ (3m) (44° Max Zoom) Full ON
COLOR
RGBW
EFFECTS
RGBW Color Mixing
4° - 44° Beam Zoom Range
Variable Dimming Curves
Electronic Strobe and Dimming (0% - 100%)
64 Color Presets and 14 Unique Color Macros
CONTROL / CONNECTIONS
(3) DMX Channel Modes (21 Total Channels)
RDM (Remote Device Management)
(7) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5pin XLR In/Out
RJ45 ethernet In/Out (KlingNET™ / Art-NET)
IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 8.74” (222.1mm)
Width: 7.31” (186mm)
Vertical Height: 13.22” (336mm)
Weight: 13 lbs. (5.9 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
101W Max Power Consumption
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP30
FIRMWARE UPDATES
Current Version: V1.05
