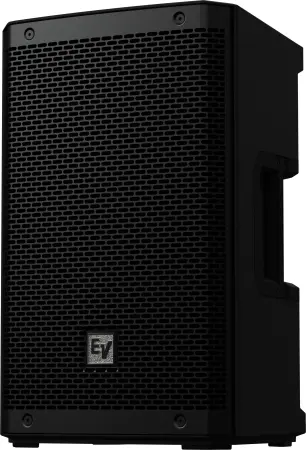

ZLX-G2 loudspeakers are offered in 8, 12, and 15-inch
woofer sizes.
Building on the tried and tested ZLX series, ZLX-G2
loudspeakers feature an improved angled cabinet
design allowing for a 55-degree monitor angle. 12 and
15-inch models additionally include a “kickback” 25-
degree monitor angle.
ZLX-G2 loudspeakers offer the best-in-class acoustic
output. Electro-Voice patented SST baffle design
ensures improved bass, small size, and even coverage
across all frequencies.

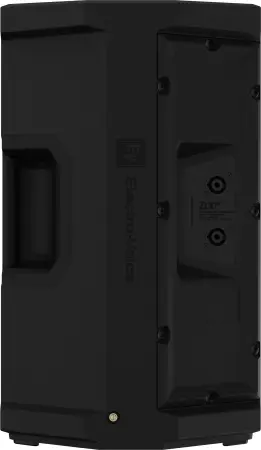

ZLX-8-G2 uses industry standard NL4 connections. The
two NL4 connectors are in parallel and pass through all
pins.
For optimal acoustics and performance, ZLX-8-G2 is
recommended to be used with a Dynacord DSP power
amplifier programmed with the appropriate speaker
settings included in the ZLX-G2 Database for SONICUE.
ZLX-G2 family accessories such as padded covers, a U-
bracket for wall mounting 12- and 15-inch models, and
short and long wall mount brackets for use with the
speaker pole mounts are available.
FEATURES:
Includes 55-degree monitor angle plus 23-
degree kickback angle.
Recommended to use with Dynacord DSP
power amplifiers.
SONICUE integration - optimized speaker
settings for best performance.
Connections easily accessible even in monitor
position.
SPECIFICATIONS:
Frequency response (-3 dB) (Hz) 1
67 Hz – 20,000 Hz
Frequency range (-10 dB) (Hz) 1
55 Hz – 20,000 Hz
Axial sensitivity (dB SPL 1W/1m) 90 dBspl 1W/1m
Maximum sound pressure level at a
distance of 1 m (dB) 1
127 dB
High pass frequency (Hz) 60 Hz
Crossover frequency (kHz) 2 kHz
Coverage angle HxV (°) 90° x 60°
Power handling (continuous) (W) 250 W
Power handling (peak) (W) 1,000 W
Nominal impedance (Ω) 8 Ω
LF transducer WECA2088
LF transducer size (in) 8 in
LF transducer magnet material Ferrite
HF transducer DH-1K
HF transducer type Compression driver
HF transducer size (in) 1.5 in
HF transducer diaphragm material Titanium
Dimensions (H x W x D) (mm) 459.6 mm x 289.9 mm x 280.5 mm
Dimensions (H x W x D) (in) 18.09 in x 11.41 in x 11.04 in
Shipping dimensions (H x W x D)
(mm)
500 mm x 390 mm x 350 mm
