Compact RGB+UV LED Par Light for Stage, Uplighting, and Wall Wash Applications
The

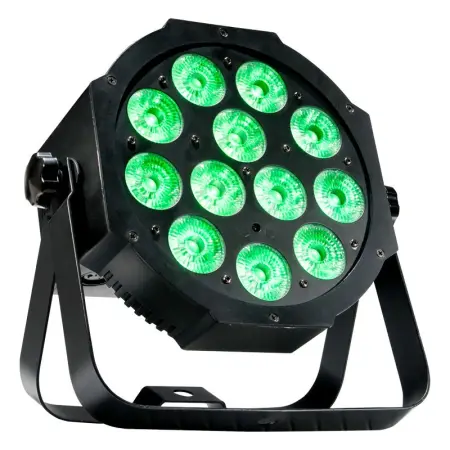

Eliminator Lighting Mega 64 Profile EP is a versatile LED Par fixture designed for vibrant, shadow-free color mixing and smooth color transitions. Featuring 12 x 4W Quad LEDs (RGB+UV), a 25-degree beam angle, and 64 built-in color macros, this compact par is ideal for stages, events, and architectural lighting. It’s designed to sit flat for uplighting and can be mounted for optimal flexibility.
Eliminator Lighting Mega 64 Profile EP Competitive Differences
- Powerful RGB+UV 4-in-1 LEDs for rich color effects without shadows
- Side-positioned power and DMX connections for easy flat-floor placement
- Flicker-free operation with a 504Hz refresh rate, suitable for video and live performances
- Compact and lightweight design, easy to transport and install
- Compatible with ADJ LED RC2 wireless remote (sold separately) for effortless remote control
Eliminator Lighting Mega 64 Profile EP Description
The
Mega 64 Profile EP by Eliminator Lighting provides professional-grade color mixing and flexibility in a compact, lightweight design. Featuring 12 powerful 4W Quad LEDs (RGB+UV) and a 25-degree beam angle, this par light is perfect for vibrant color washes, uplighting, and dynamic stage effects. The unit offers smooth color transitions without RGB+UV shadows, enhancing its versatility for both permanent installations and portable setups.
With DMX-512 protocol compatibility and five DMX channel modes, the Mega 64 Profile EP offers full control over color, brightness, and effects. This fixture also includes 16 color change and fade programs, along with strobe and pulse effects, making it suitable for any lighting design. The fixture can operate as a standalone unit or in primary/secondary configuration, allowing flexibility in larger setups.
Mega 64 Profile EP Features
- RGB+UV color mixing with shadow-free lighting
- Power and DMX ins/outs positioned for flat-floor setup
- Flicker-free operation with 504Hz refresh rate
- Four operational modes: Sound Active, Auto Run, Static Color, DMX Control
- Built-in 64 color macros and electronic dimming (0-100%)
- DMX-512 protocol with five channel modes (4/5/6/9/10 channels)
- LED display with four-button DMX control
- Linkable via 3-pin XLR cable
- Includes scissor yoke for truss, wall, or ground placement
Mega 64 Profile EP Specifications
- Light Source: 12 x 4W Quad LEDs (RGB+UV)
- Light Output: 3,520 LUX @ 2M; 820 LUX @ 4M
- Beam Angle: 25 degrees
- Power Draw: 54W Max
- Voltage: AC 100-240V, 50/60Hz
- Connections: IEC In/Out power, 3-pin XLR for DMX linking
- Dimensions: 10.5” x 10.25” x 4.5” (261 x 260 x 110 mm)
- Weight: 5 lbs. (2.1 kg)
- Fuse: 2Amp
What’s In The Box
- Scissor yoke for versatile mounting options
- 1.8-meter IEC power cable
ADJ Mega 64 Profile EP
(Eliminator Mega 64 Profile)
