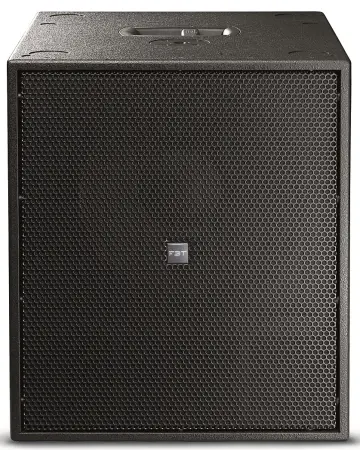

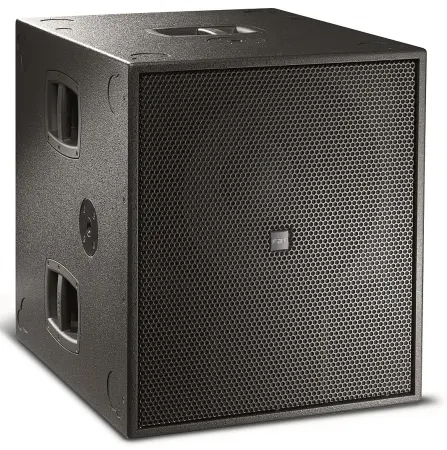

FBT HORIZON VHA 118SA is an active subwoofer in bass reflex configuration equipped with a Class D amplifier capable of delivering a power of 2500W and with a 18" B&C woofer with 4" voice coil. The system achieves considerable sound pressure level for long periods of time, guaranteeing extremely clean, precise sound reproduction with reduced noise level thanks to a wide laminar air flow chord. FBT HORIZON VHA 118SA offers the possibility to choose between 6 completely rewritten pre-defined algorithms, which also include "Infra" and cardioid applications. Add this FBT active subwoofer to your cart today.
FBT Horizon VHA 118SA Applications:
Touring sound reinforcement
Permanent installations in Theaters, Stadiums, Concert halls, Arenas.
Ideal for reinforcing and extending the low range of the VHA system.
FBT Horizon VHA 118SA Features:
Bass-reflex amplified subwoofer
460mm (18") high excursion woofer B&C with 100mm (4") coil
Frequency response from 30Hz to 100Hz
2500W rms class D amplifier with switching power supply
DSP processor with 6 presets, 6-step delay

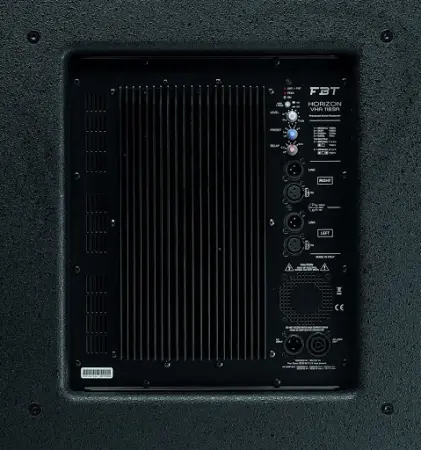

Control panel with XLR input and stereo link, volume, presets, delay, phase 0°-180°, status led
Neutrik PowerCON TRUE1 IN and LINK power connectors
Box in 18mm (0.7”) birch plywood with anti-scratch varnish
Two M20 stand sockets and 4 FBT aluminum handles, predisposed for 4 x 100mm (4”) swivel casters

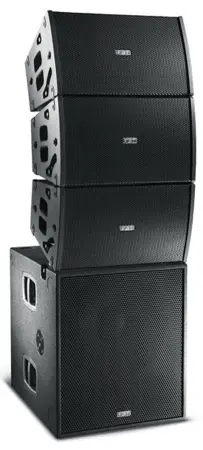

Integrated mechanics compatible with VHA406A and VHA112SA for ground stack configurations.
Extremely robust grid with protective fabric
Ideal for reinforcing and extending the low range of the VHA system, it can only be used with VHA406A or as an infra if present also the VHA 112SA
FBT Horizon VHA 118SA Specifications:
Code: 41792
Configuration: 1 REFLEX way
Built-in amplifier LF/HF: 2500 W RMS
Built-in amplifier peak LF/HF: 5000 W
Frequency response: 30Hz-100Hz -6dB
Low Frequency woofer: 1x18 - 4 coil mm
Maximum SPL cont/peak: 138/144 half-space dB
Dispersion: omnidirectional HxV
Input impedance: 22 Kohm
Crossover Frequency: preset dependant KHz
AC Power requirements: 1840 VA
Input connector: XLR with loop
Power cord: 5 m
Net Dimension (WxHxD): 606x700x720 / 23.8x27.5x28.3 mm
Net Weight: 61.5/135.6 kg
Transport Dimension (WxHxD): 700x865x800 / 27.5x34.1x31.5 mm
Transport Weight: 72.5/159.8 kg
