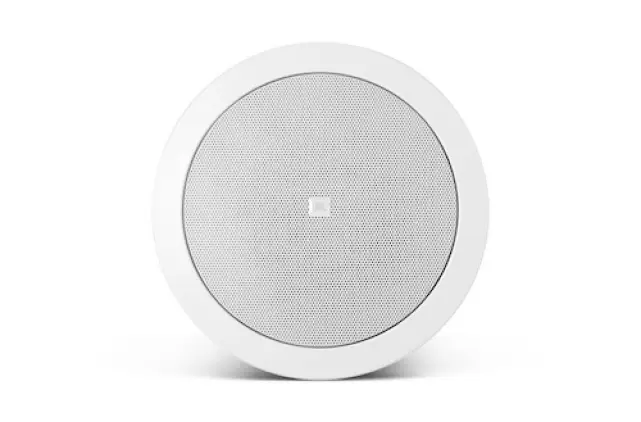

JBL Control 24CT
$150.00
Background/ Foreground Ceiling Loudspeakers
The JBL Control 24CT is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.
Order the JBL Control 24CT ceiling speaker from KPODJ today!
FEATURES:
Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
High power, wide frequency response and low distortion for high sound level capability.
Wide coverage allows fewer speakers, reducing the cost of
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
SPECIFICATIONS:
Frequency Range 80 Hz - 20 kHz
Power Capacity 80 W Continuous Program Power; 40 W Continuous Pink Noise
Transformer Taps 70 V: 30 W, 15 W, 7.5 W & 3.7 W taps
100 V: 30 W, 15 W, & 7.5 W taps
Nominal Coverage Angle 130° conical coverage
Directivity Factor (Q) 2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI) 3.8 dB averaged 500 Hz to 4 kHz
Rated Maximum SPL 102 dB @ 1 m (3.3 ft)
Nominal Impedance 16 ohms (Min Z 16.1 ohms @ 320 Hz)
