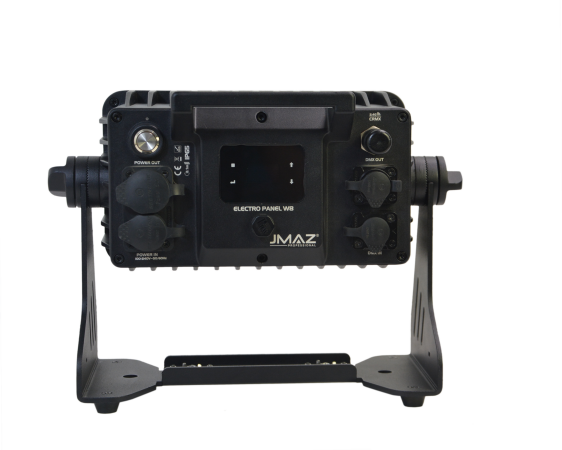

ELECTRO PANEL W8
FEATURES:
96W (8 x 12W) RGB+L LEDs
18-Hour Battery with Battery Saving Options
Lumen Radio (CRMX) Wireless DMX and RDM
Built-In Preset Colors with Auto programs

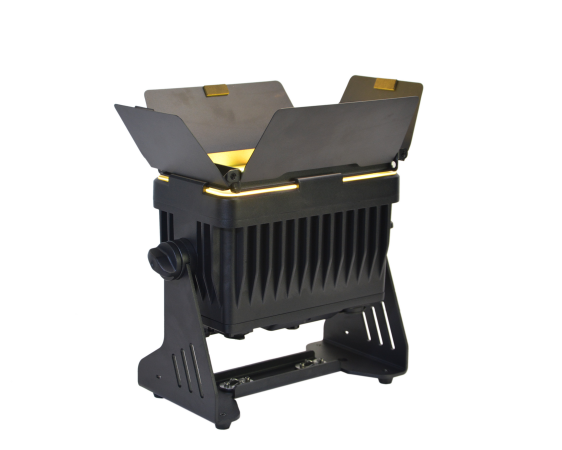

IP65 Rating with Included Barn Doors and Optional Beam Angle Diffusers
SPECIFICATIONS:
Light Source
8 x 12W RGBL LEDs
LED Life Expectancy: 50,000 hrs
Color System
RGBL Color Mixing 32 bit
Color Temperature Range: 2500k – 5600k
Fading/Jumping Macros light change and jump
Body
Die-Cast Aluminum and Steel Structure
Exterior Finish: Black
Electronics
Linear LED Dimmer: 0-100% Smooth
CCT: 2500k – 5600k
Strobe Shutter: 0-25Hz
Dimming Modes: 4
Electrical
Input Voltage: 100 V – 260 V AC, 50 -60 Hz
Power Consumption: 96W
Included 45ft Range, IR Remote
PWM: 1.5KHz
Power Linking for connecting fixture in daisy-chain
Up to 18 units @110V with a 20A circuit
Up to 30 units @208V with a 20A circuit
Up to 40 units @230V with a 20A circuit
Battery Voltage: 18.5V,
Battery Capacity: 15,000 mAH, 277.5 Wh/hour
Charger: 21V, 3.5Ah
Battery ZType: Lithium Ion
Rechargeable: Yes
Run Time: Full On: 5.5 hrs, Single Color: 11 hrs
Charging Time: 4 hrs
Battery Life Selectable: 50%, 60%, 70%, 80%, 90%, 100%
Optics
Install Optic: 20 Degree
Filter 1 Beam Angle: 40 Degree
Filter 2 Beam Angle: 60 x 10 Degree
Filter 3 Beam Angle: 80 Degree
Dynamic Effect
Tilt Range: 0-360 Degree
64 Preset Color Macros
Stand Alone Color Mixing: Yes
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0-25 Hz
Dim Mode: 4
Built-In Automated Programs: Yes
Emergency Mode: Active / Non-Active
Emergency Select: Preset Color
Control
Control Protocol: DMX, RDM
Wireless DMX: Lumen Radio (CRMX) with RDM
Personalities: 3/4/6/8/11 CH DMX Modes
Setting and addressing: OLED Graphical Display, RDM ANSI E2.20, Standalone Mode
Physical
IP Rating: 65
Cooling: Fanless
Power Connection: US Edison (UL Listed) plug to Seetronic Powercon IP65 True1
Power Input: Seetronic Powercon IP65 True1
Power Output: Seetronic Powercon IP65 True1
Data Connectors: Seetronic 5pin XLR
Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
Dimensions: 12.6” x 5.6” x 9.8”
Weight: 13.1 lbs
Certification / Qualifications
RoHS, CE, FCC
IP Rating: IP 65
Operating Temperature: 40 ° C ( 104 °F)
Minimum Temperature: – 10 ° C ( 14 ° F)
Maximum Temperature: 60 ° C ( 140 ° F)
Box Content
1 x Electro Panel W8
1 x Powercon IP65 TRUE1 Power cable
1 x 5 pin DMX Cable
1 x User Manual
1 x Omega Brackets
1 x Safety Cable
1 x IR Remote
