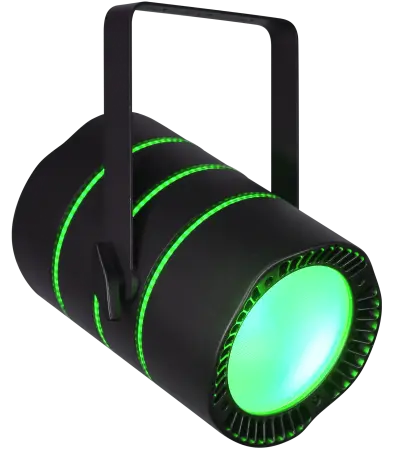

JMAZ Zona 5S

High-Power Fanless COB LED House Light with RGBA+L Output

JMAZ Zona 5S is a professional-grade 210W RGBA+L PAR-style house light designed to deliver vibrant, customizable lighting in theaters, churches, venues, and event spaces. Featuring a long-life COB LED engine, high CRI (≥90), and smooth 16-bit dimming control, it offers flicker-free output with a 55° beam angle. Its fanless operation ensures silent performance, while DMX512 and RDM compatibility make it easy to integrate into existing lighting systems.

JMAZ Zona 5S Competitive Differences

• Powerful 210W RGBA+L COB LED light source with 50,000-hour lifespan
• Wide CCT range from 2000K to 12000K for precise color temperature control
• High CRI (≥90) for excellent color rendering
• Integrated 30W RGB SMD ring effect (150 x 0.2W LEDs)
• Fanless cooling design ensures silent operation for noise-sensitive environments
• Variable 16-bit dimming modes and curves for smooth fades
• 3 DMX personality modes: 8/18/27 channels
• Supports DMX512 (5-pin and hardwire) and RDM protocols
• TRUE1 power input for secure and reliable connections
• Includes diffuser, hanging yolk, safety cable, and both power and DMX cables

JMAZ Zona 5S Description

The JMAZ Zona 5S is a versatile and powerful LED house light built for professional applications. Designed with a robust 210W RGBA+L COB LED, it provides dynamic full-spectrum color mixing with a high CRI of 90 or greater, ensuring natural and accurate color output.

The unit features a wide beam angle of 55°, making it ideal for general wash applications in larger spaces. The addition of a 30W RGB SMD LED ring effect enhances the aesthetic appeal, offering creative design options for visual accents or ambient effects. It supports advanced DMX and RDM control, allowing full customization of dimming curves, strobe effects, and pre-built programs.

With fanless cooling, the Zona 5S operates silently, making it perfect for noise-sensitive installations. Its rugged design includes TRUE1 and hardwire power connections, and it comes ready for use right out of the box with a complete accessory kit including a diffuser, mounting hardware, and cables.

Zona 5S Features

• 210W COB RGBA+L LED with 50,000-hour average life
• 30W RGB SMD LED ring effect (150 x 0.2W)
• CCT range: 2000K – 12000K
• High CRI: ≥ 90
• 55° beam angle for wide area coverage
• Fanless design for silent operation
• Electronic dimmer and strobe
• Variable 16-bit dimming modes and curves
• Built-in automated programs
• 3 DMX personality modes: 8 / 18 / 27 channels
• Control protocols: DMX512 5-pin & hardwire, RDM compatible
• TRUE1 power input and hardwire options

Zona 5S Specifications

• Light Source: 210W COB RGBA+L LED
• Ring Effect: 30W RGB SMD LEDs (150 x 0.2W)
• Color Temperature: 2000K – 12000K (CTO)
• LED Life: 50,000 hours
• Beam Angle: 55°
• CRI: ≥ 90
• Cooling: Fanless
• Dimming: 16-bit, electronic
• Control Modes: 3 personalities (8 / 18 / 27 channels)
• Protocols: DMX512 (5-pin & hardwire), RDM
• Power Connection: TRUE1 In, hardwire
• Certifications: CE, cETL, FCC, RoHS

What's In The Box

• Zona 5S Fixture
• Diffuser
• Hanging Yolk
• TRUE1 Power Cable
• 5-Pin DMX Cable
• Safety Cable
• User Manual

Jmaz Zona 5S (JMAZ Zona5S)
