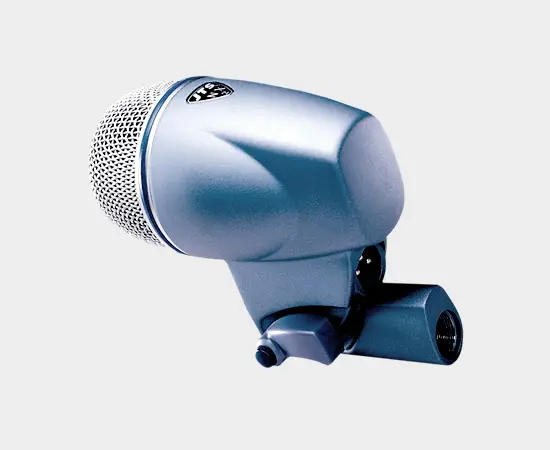

NX-2
The NX-2 is born for solving the problem in low frequency sound faced by most microphones. The specially designed frequency response provides excellent output of low end punch on a kick drum. Accurate pick-up pattern ensures the best gain-before-feedback and isolation from other sound sources on or off stage. The NX-2 is optimal for kick drum and other bass instruments.
NX 2
Type Moving Coil Dynamic
Frequency Response 20~12,000 Hz
Polar Pattern Supercardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -85dB*(0.056mV)*0dB=1V/μbar
Impedance 600Ω
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector
(male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille Integral, dynamic locking, adjustable through
Adjustable Locking Mount 180°
Net Weight 815 grams (28.75 oz)
