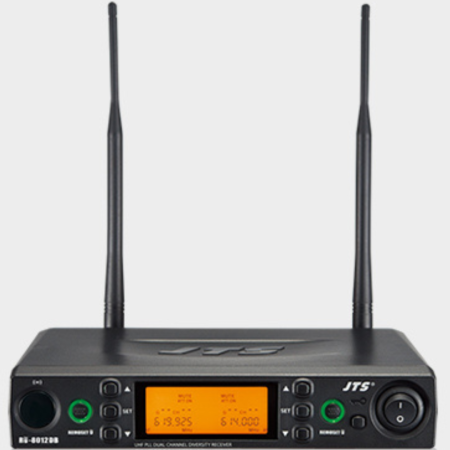

JTS RU-8012DB | Dual Channel Diversity Receiver
$257.00
UHF PLL 2-channel Diversity Receiver
Based on US-8001 successful experience RU-8012 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications.
Specifications:
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 506-542 MHz
Frequency Setting Ultrasonic / REMOSET (Transmit)
Receiving Mode Antenna Diversity
Bandwidth 36MHz
S/N Ratio > 105dB
T.H.D <0.6%@1KHz
Sensitivity -95dBm,S/N>80dB
Rejection Ratio >80 dB
Frequency Response 50Hz~16KHz±2dB
Antenna Type BNC Socket
Antenna Booster Power DC12~15V/100mA
Display Contents Group, Channel, Frequency, Antenna A/B, Mute Display,
AF Meter, RF Meter, Battery Status
Display LCD
Controls Power On/Off, Group, Channel, Frequency Up/Down, Frequency
Scan, Audio Level, Lock-on, Output Pad
Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone
ψ6.3 Phone Jack/ -10dBV
XLR Jack/ -4dBV(Line) . -24dBV(MIC)
AF Output Impedance 600Ω
Squelch Pilot Tone, Noise and Mute
Output Connector 2 independent balanced XLR and 2 Ø6.3mm unbalanced.
Power Supply DC12~15V/500mA
Dimension(m/m) 212.3mm(W)* 38.3mm(H)* 144mm(D)
