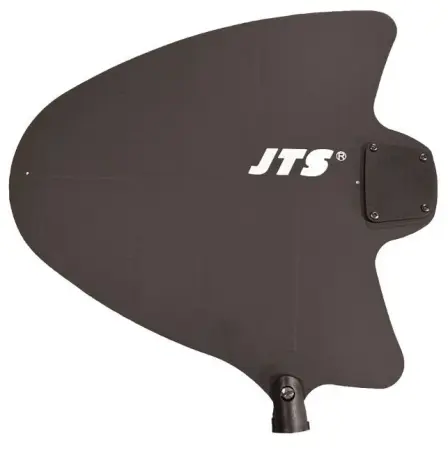

UHF Directional Antenna with Switchable Gain for Enhanced Reception
The
JTS UDA-49AP Active and Passive UHF Directional Antenna is designed for optimal signal reception across a wide frequency range. This versatile antenna offers the flexibility to switch between active and passive modes, making it ideal for minimizing signal loss, reducing interference, and boosting reception performance in multipath environments.
JTS UDA-49AP Competitive Differences
- Switchable between active and passive modes for flexible use.
- Supports a wide frequency band from 470~960 MHz.
- Selectable gain boost of 3 dB or 10 dB for better signal strength.
- Effective working angle of 100° for optimal directional reception.
- Lightweight design at only 400g for easy installation and short-term outdoor use.
- Active power supply of 12V, 50mA for reliable performance.
JTS UDA-49AP Description
The
JTS UDA-49AP is an advanced UHF directional antenna that helps improve signal reception and extend transmission range across a frequency band of 470 to 960 MHz. With a switchable gain setting of either 3 dB or 10 dB, this antenna minimizes interference and rejects unwanted RF signals, making it perfect for reducing multipath signal loss in complex environments. Its active booster feature provides enhanced signal strength when needed, and the passive mode ensures stability in lower-power applications. Designed to be lightweight and reliable, the UDA-49AP is also suitable for short-term outdoor use, ensuring dependable performance wherever it's installed.
JTS UDA-49AP Features
- Switchable active and passive modes.
- Frequency Band: 470~960 MHz.
- Effective Working Angle: 100°.
- Antenna Gain: 10 dB.
- Selectable Active Booster Gain: 3 dB / 10 dB.
- Improves signal reception and reduces interference susceptibility.
JTS UDA-49AP Specifications
- Frequency Band: 470~960 MHz.
- Effective Working Angle: 100°.
- Antenna Gain: 10 dB.
- Net Weight: 400g (0.88 lbs).
- Active Power Supply: 12V, 50mA.
- Active Booster Gain: Selectable 3 dB / 10 dB.
What's In The Box
- (1) JTS UDA-49AP Active and Passive UHF Directional Antenna
JTS UDA49AP Active and Passive Switchable
(JTS UDA 49 AP)
