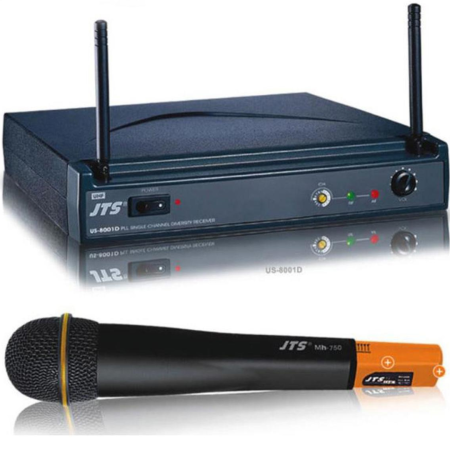

UHF PLL Single Channel Diversity Receiver / Transmitter
Features:
Preset 16 selectable UHF channels.
* Single transmitter operation.
* Diversity technology prevents dropouts in the RF link.
* PLL synthesized technology.
* Noise mute and pilot tone squelch.
* Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
* Tuned antennas maximize the effective range of the wireless link.
* Compact half rack space design.
Good for:
* Aerobics/Fitness
* School
* Cooperate presentation
* Stage performance
* Wireless for video (together with KA-10R)
Specifications:
US-8001D
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
3x Frequency range 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 HHz (I band)
502.000 - 694.000 MHz (T band)
S/N Ratio > 105dB
T.H.D <0.6%@1KHz
Display LED
Display Contents Antenna A/B, RF/AF Status
Controls Power On/Off, Channel Selecting, Audio Level
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone, Noise and Mute
Operation Voltage US-8001D/US-8001DB : 12-18 VDC, 150mA
US-8002D/US-8002DB : 12-18 VDC, 200mA
Output Connector 1 Balanced XLR socket (2 for US-8002DB/US-8002D)
1 Unbalanced Ø6.3mm phone jack
Dimension(m/m) US-8001DB/US-8002DB : 210mm (W)* 40mm (H)* 181mm (D)
US-8001D/US-8002D : 210mm (W)* 40mm (H)* 171mm (D)
Mh-750
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
3x Frequency range 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 HHz (I band)
502.000 - 694.000 MHz (T band)
RF Outputs 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Low Battery, Power On/Off
Controls Power On/Off, Channel Selecting
Spurious Emissions <-50 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V*2
