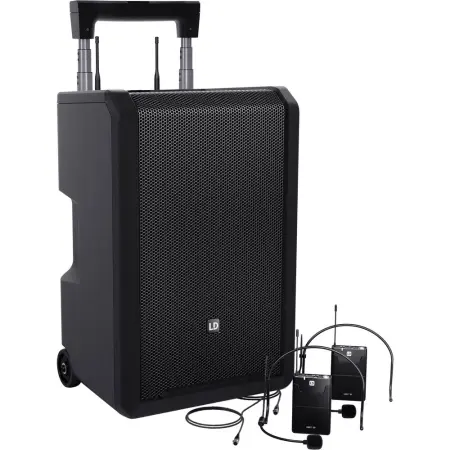

For musical performances, special events, presentations, fitness instruction, and more, the ANNY 10 BPH2 Battery-Powered Bluetooth PA Speaker with 2 Headset Microphones from LD Systems delivers versatility and power in a portable package that anyone can use. The two-way speaker system consists of a 10" woofer and a 1" driver driven by 80W of Class-D amplification with DynX DSP (Gen. 2) technology to deliver clear and powerful sound that won't distort even with the volume fully cranked. An onboard rechargeable battery powers the ANNY 10 for between 5 and 25 hours dependent on use, while the built-in luggage handle and rolling wheels ensure the system is ready for the road.

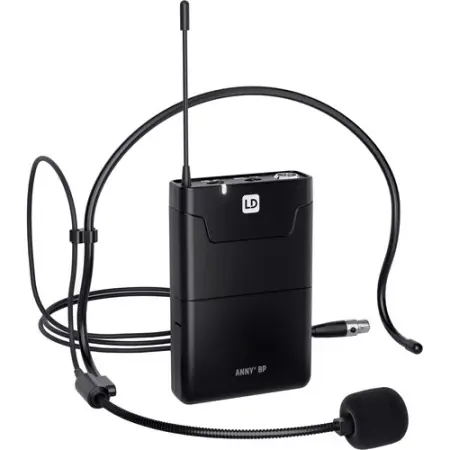

This configuration includes two headset microphones, a pair of wireless bodypack transmitters, and two UHF receivers, forming a reliable 2-person wireless system that operates in the 512 to 542 MHz frequency band. Additional input sources include two XLR-1/4" combo jacks that are switchable for mic or line level, a single 3.5mm jack, and two RCA inputs, along with wireless streaming via Bluetooth. The 6-channel onboard mixer with LCD screen offers per-channel volume controls, 3-band EQ, echo, reverb, and master volume. On the top, there is a handy storage compartment for mobile devices. The ANNY 10's polypropylene cabinet is durable, lightweight, and stand mountable.
FEATURES:
10" portable battery-powered Bluetooth PA system
Active 2-way full-range loudspeaker
Built-in 6-channel mixer with 3-band EQ, reverb, and delay
Long battery life up to 25 hours in ECO mode and 5 hours at maximum volume
Includes two headset microphones with bodypack transmitters and supplied AA batteries
Bluetooth 5.0 and stereo streaming (TWS) with two ANNYs
Wheels and telescopic handle for easy transport
Clear and distortion-free sound at maximum volume through DynX DSP (Gen 2)
2 microphone/line inputs for versatile connection options
1 stereo input with 3.5mm jack or RCA connectors
Priority/ducking mode to emphasise the microphone signal
35mm flange for use with a speaker stand
USB-C port for charging a tablet or smartphone
Footswitch input for hands-free effect control
Integrated holder for tablet or smartphone
80W RMS / 160W peak with a max. SPL of 118 dB
SPECIFICATIONS:
Speaker Configuration
1x 2-Way Loudspeaker
Number of Input Channels
6 (2 x Mono, 2 x Stereo)
Amplifier Power Rating
Total:
1x 80 W RMS
HF Driver
1x 1" / 2.5 cm
LF Driver
1x 10" / 25.4 cm
Microphone Type
2x Headworn
Audio I/O
2x Combo XLR-1/4" TRS Mic/Line Input
2x RCA Coaxial Line Input
1x 1/8" / 3.5 mm TRS Aux Input
1x XLR 3-Pin Male Mix Output
Show Less
USB I/O
1x USB-C (Device Charging)
Wireless Transmission
Bodypack Transmitter:
UHF
Bluetooth
5.0
Portable PA System
Speaker Configuration
1x 2-Way Loudspeaker
Number of Input Channels
6 (2 x Mono, 2 x Stereo)
Amplifier Power Rating
Total:
1x 80 W RMS
Amplifier Class
Class-D
Speakers
Enclosure Type
Speaker:
Bass-Reflex
HF Driver
1x 1" / 2.5 cm
HF Voice Coil
1" / 2.5 cm
LF Driver
1x 10" / 25.4 cm
LF Voice Coil
2" / 5.1 cm
Magnet
Ferrite
Speaker Sensitivity
111 dB SPL (Typical)
118 dB SPL (Max)
Signal Processing
Crossover
1800 Hz
Input Pad
No
EQ
3-Band Graphic
Semi-Parametric EQ
No
Effects
Delay
Reverb
Filters
No
Dynamic Processing
No
Microphone
Microphone Type
2x Headworn
Capsule
Electret Condenser
Polar Pattern
Cardioid
Outputs
1x TA3/Mini XLR 3-Pin (Lockable)
Operating Voltage
5 V
Muting
No
Performance
Frequency Response
45 Hz to 20 kHz
Maximum SPL
118 dB SPL (Peak)
111 dB SPL (Continuous)
Coverage Angle
90° H x 50° V
Input Sensitivity
1/4" / XLR Mic/Line Input:
Connectivity
Audio I/O
2x Combo XLR-1/4" TRS Mic/Line Input
2x RCA Coaxial Line Input
1x 1/8" / 3.5 mm TRS Aux Input
1x XLR 3-Pin Male Mix Output
USB I/O
1x USB-C (Device Charging)
Mobile App Compatible
No
Network I/O
No
Wireless Connectivity
Bluetooth
Wireless
Wireless Transmission
Bodypack Transmitter:
UHF
Max Wireless Range
262.5' / 80 m
Number of RF Channels
12
RF Frequency Band
Bodypack Transmitter:
512 to 542 MHz
RF Bandwidth
30 MHz
Form Factor
Transmitter:
2x Bodypack
RF Output Power
10 mW
Transmitter I/O
1x TA3/Mini XLR 3-Pin Mic Input (Lockable)
Diversity
Non-Diversity
Antenna
1x Flexible Whip (Top-Mount)
Bluetooth
5.0
Power
Battery Type
System:
Rechargeable 12 V Lead-Acid (Replaceable)
Bodypack Transmitter:
2x AA
Approximate Battery Life
5 to 25 Hours
Battery Charging Time
7 Hours
Internal Battery Capacity
System:
5 Ah
AC Input Power
100 to 240 VAC, 50 / 60 Hz (T 2 A L 250 V)
Power Consumption
150 W
AC Power I/O
1x IEC Input
Physical
Transport Options
1x Telescopic Handle
2x Wheels
Mounting
1 x 1.4" / 35 mm Pole Socket
Construction Material
Polypropylene
Environmental Protection
No
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
0 to 80%
Weight
40.85 lb / 18.53 kg
