The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.
Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

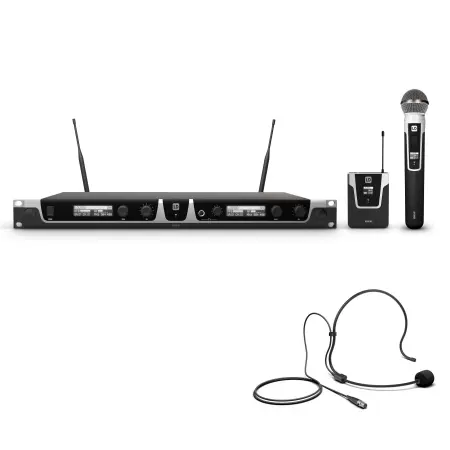

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.
FEATURES:
Overview of frequency ranges of vocal sets:
U505 // 584 - 608 MHz // 12 systems can be used simultaneously
U506 // 655 - 679 MHz // 12 systems can be used simultaneously
U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
U506 UK (Channel 38) // 606 – 614 MHz //
U518 // 1785 – 1800 MHz //
SPECIFICATIONS:
General
Product type Wireless Microphone Systems
Type Headsets / Handhelds
Weight 5,3 kg
Product type Wireless Microphone System Accessories
Type Bodypack
Transmission frequency range 584 - 608 MHz
Inputs Mini-XLR (3-pin)
Frequency response 30 - 16000 Hz
Rated HF output power Variable (2mW, 10mW, 30mW)
Signal-to-noise ratio >90 dB
Operating voltage 2 x AA battery
Operating time >10 h (with alkaline batteries)
Controls Set
Indicators OLED Display
Width 65 mm
Height 86 mm
Depth 23 mm
Weight 0,09 kg
Other features switchable RF power
LDWS100MH1 - LD Systems U505 HBH 2 Headset
Type Headsets
Directivity Cardioid
Nominal impedance 680 Ohm(s)
Frequency response 20 - 20.000 Hz
Phantom power requierements 5 V
Microphone input Mini-XLR (3-pin, female)
Weight 0,049 kg
Accessories (included) Foam windscreen
LDU505MD - LD Systems U505 HBH 2 Dynamic handheld microphone
Type Microphones
Groups 8
Channels 96 (8 groups of 12 channels)
Microphone type Dynamic
Frequency response 60 - 16,000 Hz
Signal-to-noise ratio >95 dB
Length 257 mm
Diameter 51 mm
Controls select
Weight 0,25 kg
Other features interchangeable capsule
LDU505R2 - LD Systems U505 HBH 2 Dual receiver
Type true diversity
Modulation Type FM
Channels 2 x 96 (8 groups of 12 channels)
Antenna inputs 2
Antenna connector BNC
Noise reduction Squelch
Total Harmonic Distortion (THD) < 0.1 %
Signal-to-noise ratio > 100 dB
Audio output, balanced 2 x XLR
Audio output, unbalanced 2 x 6.3 mm TS
Audio mix output, balanced XLR
Audio mix output, unbalanced 6.3 mm jack
Max. output level +10 dBu
Headphones ouput 1
Headphones outputs 6.3 mm TRS
Controls volume
Indicators 2 x OLED Display
Operating voltage 12 V DC, 1000 mA
Width 484 mm
Height 44 mm
Depth 200 mm
Weight 2,05 kg
Accessories (included) power adapter
Other features Pilot tone
