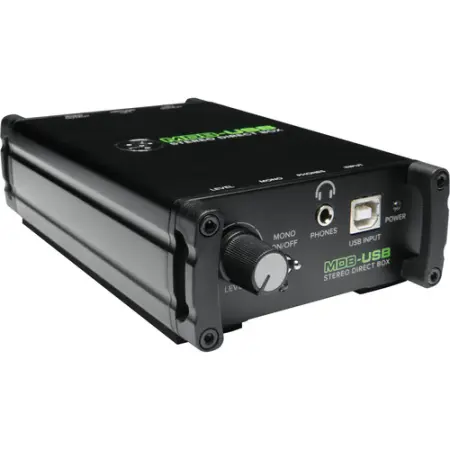

Mackie MDB-USB Bus Powered Direct Box
With the bus-powered Mackie MDB-USB Stereo DI, the days of relying on your headphone jack to get audio from a computer into analog gear are over. Combining a high-resolution audio interface with a noise and distortion-free stereo DI, MDB-USB converts your digital audio into clean, balanced, stereo output. This Mackie direct box features an output level control, headphone output, and mono sum for maximum versatility. Analog outputs are dual XLR with ground lift. Add this passive stereo direct box to your cart today!
Mackie MDB-USB Features:
Connect your computer directly via USB
High-resolution 24bit/96kHz interface

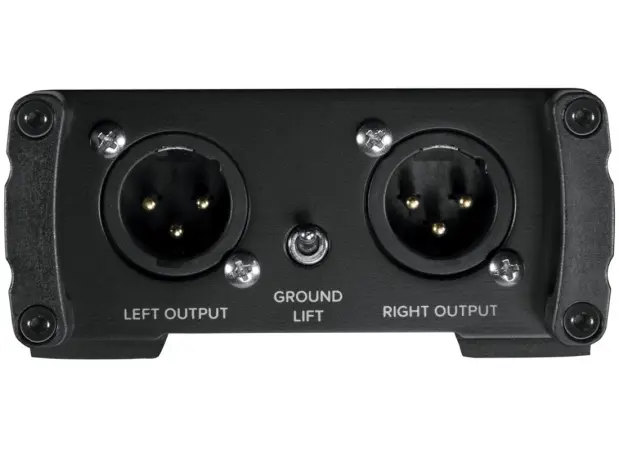

Balanced, low-impedance XLR outputs with Ground Lift
Output level control with Mono switch
Headphone output for easy monitoring
Noise-free operation
Powered by your computer
Plug and play operation, no driver required
Built-Like-A-Tank construction
Mackie MDB-USB Specifications:
Type DAC
Input Connections 1 x USB 2.0 Type-B female
Output Connectors 2 x XLR 3-pin balanced
1 x 1/8" (3.5 mm) stereo mini-jack
Input Impedance 330 kOhms balanced
Output Impedance XLR: 600 Ohms balanced
3.5 mm: 150 Ohms unbalanced
Controls 1 x mono switch
1 x ground-lift switch
1 x level knob
Supported Resolution Up to 24-bit/96 kHz
Frequency Response 20 Hz to 20 kHz (±0.5 dB)
Dynamic Range 88 dB
Total Harmonic Distortion 0.01%
Power Requirement USB, 90 mA
System Requirements
Mac OS
Windows 7, 8, or 10
Supports WDM, MME, Core Audio, DirectSound, and WAV
Construction Material Heavy-gauge steel chassis
Dimensions (H x W x D) 1.5 x 3.4 x 5.8" / 38 x 86 x 147 mm
Weight 1 lb / 0.5 kg
