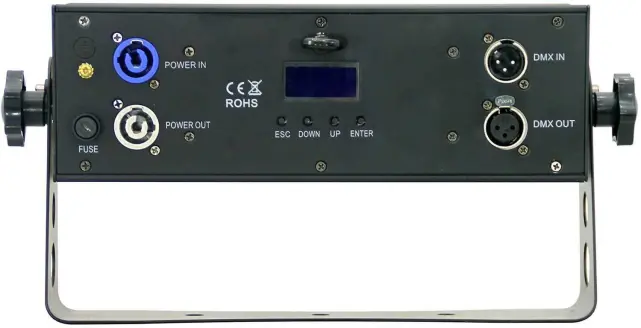

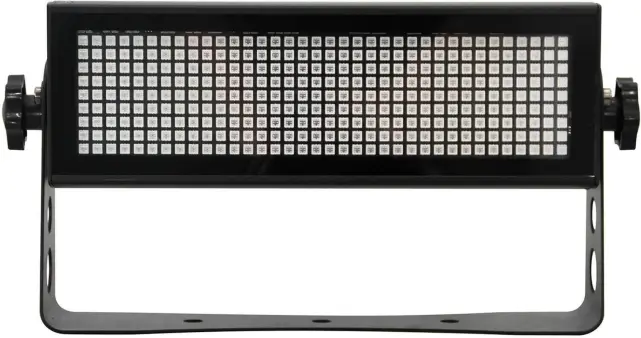

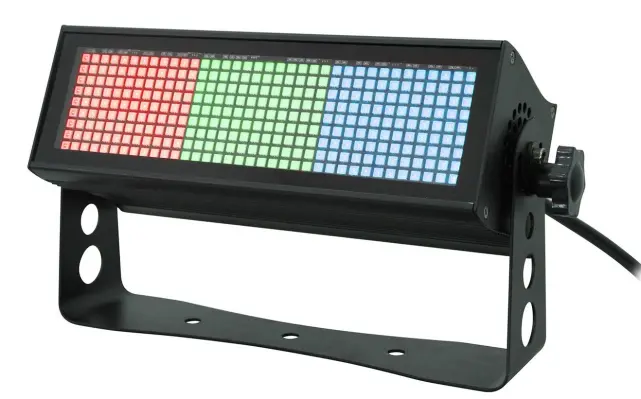

The XS LED Strobe RGB is an immensely bright, versatile fixture from Mega-Lite. It is equipped with a total of 324 RGB SMD LEDs. The LEDs have a wide 140º LED angle and the unit can operate as a wash or strobe. The XS LED Strobe RGB has 3 segments of control. Line up multiple units together in matrix to create chases and other eye-catching effects. The XS LED Strobe RGB is controlled via DMX 512. The unit has dimmer, red, green, blue, strobe, macro and 3 segment macro channels and 4 modes of operation. It is built with 5 pin XLR in and out connectors and PowerCon in and out connectors. The XS LED Strobe RGB has a single mounting yoke. And, it’s compact measuring 13.66” x 4” x 7.12” and weighing 6.5 lbs.
SPECIFICATIONS:
ITEM ID:3011
DMX CONNECTORS:5 PIN XLR CONNECTORS IN/OUT
POWER CONNECTION:POWER CON IN/OUT
THERMAL:MAXIMUM AMBIENT TEMPERATURE 104º F MAXIMUM SURFACE TEMPERATURE 140º F
DISPLAY:DIGITAL
FASTENING SYSTEM:SINGLE MOUNTING YOKE
LED QUANTITY:324 RGB SMD LEDS
POWER SUPPLY:110V≈240V 50/60HZ
BALLAST:ELECTRONIC
POWER CONSUMPTION:WATTS: 165W / AMPS: 2.49
LED WATTS:.50W EACH
LED LIFETIME:60 TO 100,000 AVERAGE
PROTOCOL:DMX 512
MODE 1 CHANNEL:3 CHANNELS R, G, B
MODE 2 CHANNEL:7 CHANNELS DIMMER, R, G, B, STROBE, MACRO
MODE 3 CHANNEL:8 CHANNELS DIMMER, R, G, B, STROBE, MACRO, 3 SEGMENT MACROS
MODE 4 CHANNEL:9 CHANNELS R, G, B, X 3
CONTROL OPTIONS:DISPLAY CONTROL, MASTER SLAVE
