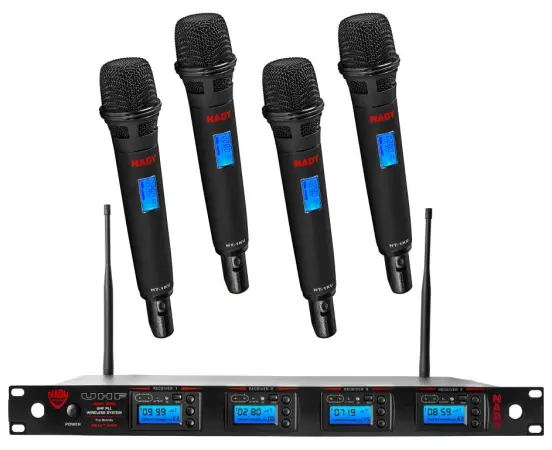

The 2W-1KU Wireless System is a professional UHF wireless, offering clear-channel, frequency-agile operation on the UHF band for interference-free performance in any application or locale, and provides you great performance at a exceptional price point. The 2W-1KU wireless system offers 1000 user-selectable channels, frequency synthesized into 10 groups of 100 channels in the US frequency band 520.0MHz-544.99MHz. It features proprietary companding and low-noise circuitry for an amazing 120dB dynamic range. The True Diversity circuitry has two complete front ends for maximum range and dropout protection.
2W-1KU Wireless System
State-of-the-art PLL UHF performance with 120dB dynamic range and operation up to 500 ft. line-of-sight
1000 user-selectable UHF frequencies per band
True Diversity circuitry with two complete front ends for maximum range and dropout protection
ASC (Auto-Sync Channels) IR download feature sends selected Group/Channel information to transmitters via IR senders on receivers for easy frequency synchronization
Front-panel touch control buttons and user-friendly LCD configuration menus
Sophisticated IF filtering for simultaneous operation of multiple W-1KU systems in the same location
Mute control (RF squelch)
2W-1KU Wireless Receiver:
Front panel backlit LCD display indicates selected audio output volume level, Group/Channel, RF signal strength meter, A/B diversity status;
Separate audio LED bar graph display provides instantaneous audio level status from a distance
Back-panel features 2 individual balanced XLR Mic Level and 1 unbalanced SUM 1/4″ line level audio output jacks
RF BNC connectors for dual removable 1/2 wave antennas
DC power input jack
Externally powered (adapter included)
Transmitters
Sleek, durable, all-metal housing
LCD display indicating selected Group, Channel, Audio Input Levels, and Battery level status
Transmitting High/Low RF power switch for optimizing distance operation depending on application;
Operation with two AA batteries (alkaline or rechargeable NiMH) for longest reliable, economical battery life.
HT-1KU Handheld Microphone Transmitter
Internal antenna system
Superior Nady DM-10D neodymium cartridge for clear, powerful audio, maximum feedback rejection, and minimal handling noise
Power switch
BT-1KU Bodypack Transmitter
Your choice of two versions: LT or GT features road worthy all-metal case; power Off/Mute/On switch; flexible external antenna rod; and mini locking connector.
(LT) Lapel microphone / Headmicâ„¢ microphone
(GT) Guitar/Bass
