NovaStar VX1000
$2,799.99
The VX1000 features 10 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX1000 unit can drive up to 6.5 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels, respectively, which is ideal for ultra-wide and ultra-high LED screen applications.
The VX1000 is capable of receiving a variety of video signals and processing high-resolution 4K×1K@60Hz images. In addition, the device features stepless output scaling, low latency, 3D, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.
What's more, the VX1000 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your in-field operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update.
Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.
SEPCIFICATIONS:

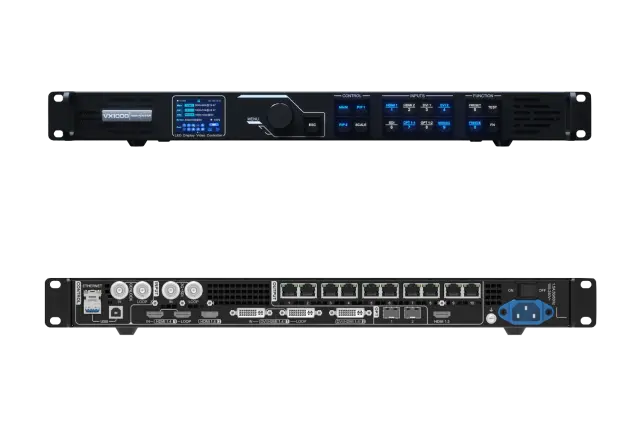

nput connectors
− 1x HDMI 1.4 (IN & LOOP)
− 1x HDMI 1.4
− 1x DVI (IN & LOOP)
− 1xDVI
− 1x 3G-SDI (IN & LOOP)
− 1x 10G optical fiber port (OPT1)
Output connectors
− 10x Gigabit Ethernet ports
A single device unit drives up to 6.5 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
− 2x Fiber outputs
OPT 1 copies the output on 10 Ethernet ports.
OPT 2 copies or backs up the output on 10 Ethernet ports.
− 1x HDMI 1.3
For monitoring or video output
Self-adaptive OPT 1 for either video input or sending card output. Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
Audio input and output
− Audio input accompanied with HDMI input
source
− Audio output via a multifunction card
− Output volume adjustment supported
Low latency
Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
3x layers
− Adjustable layer size and position
− Adjustable layer priority
Output synchronization
An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.
Powerful video processing
− Based on SuperView III image quality processing technologies to provide stepless output scaling.
− One-click full screen display
− Free input cropping
Easy preset saving and loading
− Up to 10 user-defined presets supported
− Load a preset by simply pressing one button
Multiple kinds of hot backup
− Backup between devices
− Backup between Ethernet ports
− Backup between input sources
Mosaic input source supported
The mosaic source is composed of several input connectors of the same type.
Up to 4 units cascaded for image mosaic
Three working modes
− Video Controller
− Fiber Converter
− Bypass
All-round color adjustment
Input source and LED screen color adjustment supported, including brightness, contrast, saturation, hue and Gamma
3D function
Work with the EMT200 3D emitter and matched 3D glasses to present a 3D visual experience.
Pixel level brightness and chroma calibration
Work with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
Multiple operation modes
Control the device as you wish via V-Can, NovaLCT or device front panel knob and buttons.
Physical Dimensions (LxWxH)
19.04" x 13.83" x 1.98" (483.6 × 351.2 × 50.1 mm)
Net Weight
8.82lbs (4kg)
Electrical Parameters
100-240V~, 1.5A, 50/60Hz
