Advanced 4K LED Display Controller for Live Events and Installations
The
NovaStar VX1000 Pro is a feature-rich all-in-one video processor and LED display controller designed for high-resolution, large-format display systems. Supporting up to 4K×2K@60Hz and 6.5 million pixels across 10 Ethernet ports, it offers powerful performance, flexible input/output configurations, and ultra-low latency for seamless integration into rental, staging, and fine-pitch LED applications.
NovaStar VX1000 Pro Competitive Differences
- Supports 4K@60Hz via HDMI 2.0 for ultra-clear visuals
- 10x Gigabit Ethernet outputs and 2x fiber outputs for robust connectivity
- Up to 6 video layers with customizable sizing and positioning
- Zero-frame latency in ByPass mode for real-time processing
- USB 3.0 port for plug-and-play media playback (MP4, JPEG, PNG, BMP)
- Extensive preset storage capacity: up to 256 recallable presets
- Full 3D support via third-party emitter using dedicated connector
- Pixel-level brightness and chroma calibration for image consistency
NovaStar VX1000 Pro Description
The
NovaStar VX1000 Pro is engineered for versatility, integrating advanced video processing and control features into one streamlined unit. Ideal for large LED walls, fine-pitch displays, and dynamic stage designs, it offers powerful input compatibility including HDMI 2.0, SDI, and fiber, along with low-latency output across ten Ethernet ports.
Its ability to handle up to 4096×2160@60Hz with 8/10/12-bit processing ensures premium video quality. The unit’s 6-layer compositing engine supports multiple simultaneous input sources with layer priority, aspect ratio control, and real-time scaling. Backed by NovaStar’s robust Genlock sync support, pixel-level calibration, and redundancy options, it delivers professional-grade reliability and visual performance.
Multiple control methods including front panel access, NovaLCT software, the Unico web interface, and the VICP app provide maximum flexibility in different scenarios.
VX1000 Pro Features
- Integrated video processor and LED controller
- 10x Gigabit Ethernet output ports (6.5 million pixel capacity)
- 2x Fiber outputs (OPT 1 & OPT 2 for copy or backup)
- 1x HDMI 2.0 input and loop
- 2x HDMI 1.3 inputs
- 1x 3G-SDI input and loop
- 1x 10G optical fiber port (OPT 1, self-adaptive input/output)
- 1x HDMI 1.3 monitoring output (1920×1080@60Hz)
- 1x 3D connector for third-party emitters
- 1x USB 3.0 for media playback (JPEG, PNG, BMP, MP4)
- HDMI audio input, 3.5 mm audio input/output with adjustable volume
- Support for RGB 4:4:4, YCbCr 4:4:4, and 4:2:2 formats
- Zero-frame latency (ByPass mode)
- Pixel-level brightness and chroma calibration
- Screen configuration with up to 6 adjustable layers
- Preset storage: up to 256 user-defined presets
- Control via front panel, NovaLCT, Unico web interface, VICP mobile app
- Redundancy: End-to-end backup for inputs, devices, and Ethernet outputs
- Auto-save feature for data during power failures
VX1000 Pro Specifications
- Maximum input resolution: 4096×2160@60Hz
- Output resolution capacity: Up to 6.5 million pixels
- Maximum width: 10,240 pixels
- Maximum height: 8,192 pixels
- Color depth: 8-bit / 10-bit / 12-bit
- Audio input/output: HDMI and 3.5 mm stereo jack
- Control options: Front panel, NovaLCT, Unico web interface, VICP app
- Power consumption: 43W
- Product weight: 8.6 lb (3.9 kg)

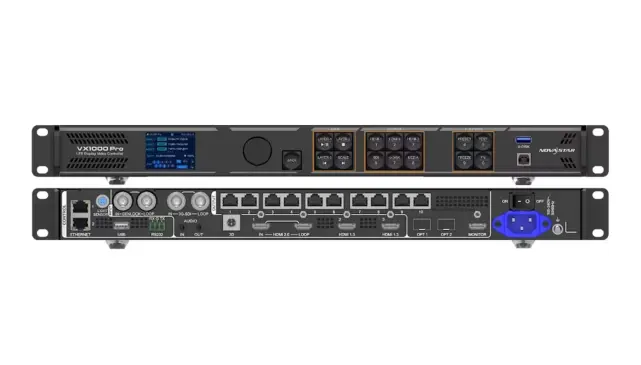

Nova Star VX1000 Pro
(NovaStar VX 1000 Pro Video Wall Processor)
