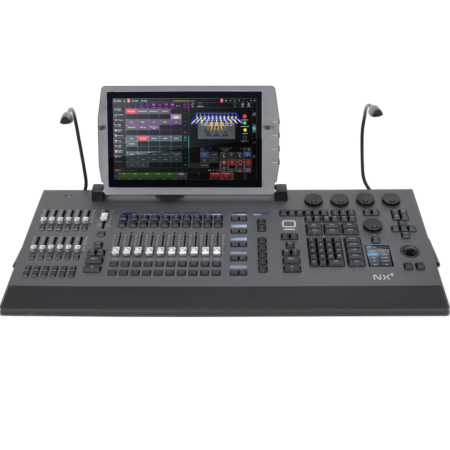

Obsidian NX4
$12,450.00
The NX 4 is a comprehensive feature packed control surface. With a well-arranged combination of motorized and manual faders as well as an array of playback button the NX4 offers 44 total playbacks in a compact yet extremely powerful package. As a member of the innovative ONYX platform from Obsidian Control Systems the NX4 is feature-rich and never restricted in its capabilities. NX 4 includes a high brightness Full HD multi touch screen, 8 assignable parameter encoders, dedicated Intensity encoder, an assistive mini touch screen, full keypad and command section and a dedicated grand master. Two independent playback section offer instant access. The main playback with 10 motorized faders plus 10 play-pairs allows for quick page changes while the sub playback with 12 faders and 12 button playbacks allow to have important cues always at the user’s fingertip. Utilizing the latest in industrial components the NX 4 contains a powerful new Intel Hexa-Core processor, high speed NVMe SSD drive and 16GB of DDR4 RAM. Fast boot times, instant operation and the ability to process 64 Universes right inside the console without the need for costly external processing networks result in unprecedented power in this form factor. The NX 4 is ergonomic with its motorized playback faders, short depth, easy screen access, full ONYX command and keypad section and the bright adjustable HD touch screen. It is always ready to run the largest shows and events at a moment’s notice. With four DMX ports, Timecode, Midi and dual Gigabit ports for up to 64 Universes of Art-Net, sACN plus the ONYX X-Net protocol the NX 4 has all the connectivity and power the ever-increasing sizes of shows demand. Two additional 4K touch monitors are supported for even more direct access at any time.
CONTROL SURFACE
10 x 60 mm motorized playback faders, each with 4 x function-assignable buttons, digital backlit labels
12x 45mm Sub Playback Fader with Flash keys
22x Playback Executors
12 x customizable multi-function keys
Playback Select button
2x Master Go section with Go, Pause, Snap and Release
4 x digital rotary encoders with push function and status LED for fixture parameter control
4x screen mounted digital rotary encoders with push
1x digital intensity Encoder with push
3.5” RGB touchscreen for parameter groups, effect parameters, fanning and global timings
1x 60mm Grandmaster with Flash/DBO
Blind/HighLight/Last/Next buttons
Full numerical keypad and command keys
Industrial Trackball
HARDWARE
Industrial 15.6” TFT 16:9 touchscreen (1920x1080px)
250 GB NVMe M.2 storage drive
Industrial motherboard with Intel i5 Hexa-Core CPU
Quiet thermal design using advanced copper heat pipe coolers
16 GB DDR4 RAM
Integrated graphics processor
Windows 10 IoT Embedded Operating System
OS installation by USB 3.0 storage device
Supports Windows USB touchscreens
CONTROL / CONNECTIONS
4x DMX / RDM Universe In/Out: 5-pin locking XLR
External Display: 2x DisplayPort (up to 4k)
Network: 2x Gigabit for Art-Net, sACN and ONYX X-Net
Storage and Peripherals: 3x USB 3.0, 3x USB 2.0
Audio Out, Mic In: 2x 6.3mm Jack
MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode): 5pin DIN
SMPTE Timecode In/Out: 3-pin XLR
powerCON True1 In
Desk lamp: 2x RGB LED, integrated
SIZE / WEIGHT
Length: 16.9” (431mm)
Width: 36.5” (928mm)
Height: 5.9” (149mm)
Weight: 36.1 Lbs. (16.4 kg)
ELECTRICAL / THERMAL
12VDC 11A
140W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
2x Integrated RGB Desklamp
Dust Cover
1.5 m power cable, powerCON TRUE1 to Schuko
