Driven by a highly efficient power amp, RBN™ 110 speaker enclosures combine best-in-class audio quality with Peavey's legendary reliability. Ribbon drivers have been used in studio environments for decades, and Peavey developed a way to apply this high-quality sound technology to live applications resulting in a crystal-clear sound that no traditional compression driver can rival. To match the high-frequency performance of Peavey's ribbon driver, RBN™ 110 enclosures are equipped with 10" high performance speakers. Completely user-friendly, the speaker system features internal presets built into the 96K DSP, allowing users to quickly select the speaker's application or orientation via the LCD on the rear of the enclosure.
Features:
Two-way, bi-amplified, optimized loudspeaker system
Proprietary 120mm true ribbon high frequency driver on low-coloration wave guide
9-band EQ
Processed-thru output enables DSP to be used with external subwoofer
Bass enhancement
Delay 0-150ms
Power amp VU meter with LCD display
Internal temperature monitor
Mic/line level selection
Auto-off power/power down
Two channel XLR/1/4" combination inputs
Setup Wizard for easy configuration
Digital compression/limiting
Program EQ presets
10" High performance speakers
Side and top handles
Direct-thru output with combine function
Ultra-braced molded enclosure
On-board advanced digital signal processing
Multiple side and top fly points
1,050 Watts Watts peak power output
Weight Unpacked: 37.04 lb(16.8 kg)
Weight Packed: 43.21 lb(19.6 kg)
Width Packed: 15.625"(39.6875 cm)
Height Packed: 25.75"(65.405 cm)
Depth Packed: 15.625"(39.6875 cm)
Powered: Yes
Power Configuration: Bi-amped
Channels: 2
LF Driver Size: 1 x 10" Scorpion Dual Voice-coil woofer
HF Driver Size: 4.7" Ribbon HF driver
Total Power: 1050W Peak
Inputs: 2 x XLR-1/4" combo (mic/line), 1 x 1/8" TRS (aux in)
Outputs: 1 x XLR (thru), 1 x XLR (sub out)
Frequency Response: 73Hz-20kHz
Maximum Peak SPL: 125 dB SPL @ 1m
Signal Processing: Delay (150ms), Bass Enhancement, Compression/Limiting, EQ Presets
Enclosure Material: Ultra-braced Molded Enclosure
Mounting Options: Floor Wedge, Multiple Fly Points
Power Source: Standard IEC AC cable
Height: 22"
Width: 12.36"
Depth: 12"
Weight: 37.04 lbs.
Manufacturer Part Number: 03614720
Peavey factory warranties are void on any Peavey products that are not factory sealed. However, KPODJ will match the Peavey warranty at no cost so you are covered when purchasing Store Reseals.

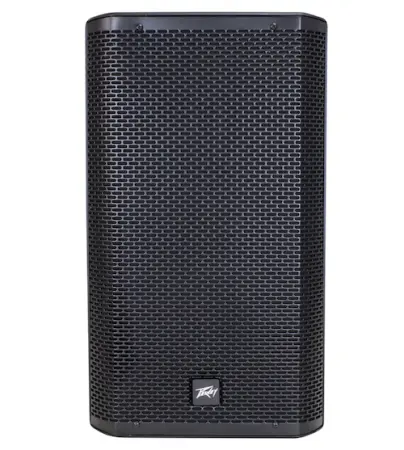

Peavey RBN 110
(Peavey 03614720)
