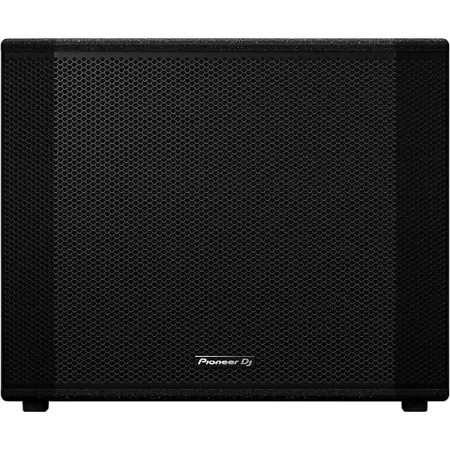

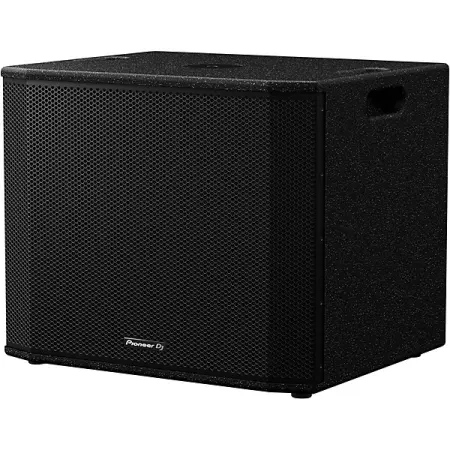

High-Output 18-Inch Powered Subwoofer for DJs, Live Sound & Installations
The Pioneer DJ XPRS1182ST delivers deep, powerful bass ideal for professional DJs, live performers, and permanent sound installations. With a commanding 4,000W Class-D amplifier and an 18" ferrite woofer, this active subwoofer produces floor-shaking low frequencies down to 40Hz. Whether you're enhancing a full-range PA or building a touring rig, this sub brings reliable, high-impact performance to every application.
Pioneer DJ XPRS1182ST Competitive Differences
- High-powered 4,000W Class-D amplifier ensures clean, consistent low-end output
- Large 18" ferrite woofer with 3" (76mm) voice coil delivers deep, defined bass
- Selectable DSP modes (Boost, Extended LF, Normal) for optimized performance
- Crossover control with 80Hz, 100Hz, and 120Hz low-pass filter settings
- Rugged plywood cabinet with black finish and metal grille for durability
- Integrated pole-mount socket (M20) and optional wheelboard compatibility
- Max SPL of 130dB for powerful output in large venues
Pioneer DJ XPRS1182ST Description
The XPRS1182ST is engineered for professionals who demand serious low-end reinforcement. With a peak power rating of 4,000W and a frequency range that dips as low as 40Hz, this subwoofer provides the kind of bass that you not only hear but feel. Its 18" ferrite woofer is backed by a long-excursion 3" voice coil, offering impactful bass response even at high SPLs, while internal protections ensure reliability under demanding conditions.
Fine-tune your sound with three DSP modes—Boost for punch, Extended LF for richer lows, and Normal for balanced operation. The variable low-pass filter crossover lets you tailor the frequency integration between sub and top boxes, creating a seamless full-range experience.
Built for the road, the XPRS1182ST features a robust plywood cabinet, steel grille with foam lining, and heavy-duty rubber feet. With ergonomic handles and a standard M20 pole-mount socket, it's easy to transport and integrate into any live rig or install system.
XPRS1182ST Features
- 4,000W Class-D peak amplifier for high-output performance
- 18" ferrite woofer with 3" (76mm) long-excursion voice coil
- Three DSP Modes: Boost / Extended LF / Normal
- Selectable crossover frequencies: 80Hz / 100Hz / 120Hz (Low-Pass Filter)
- Built-in overheat, short circuit, and digital compressor protection
- Temperature-controlled fan for efficient cooling
- Rugged plywood enclosure with black paint finish and metal grille

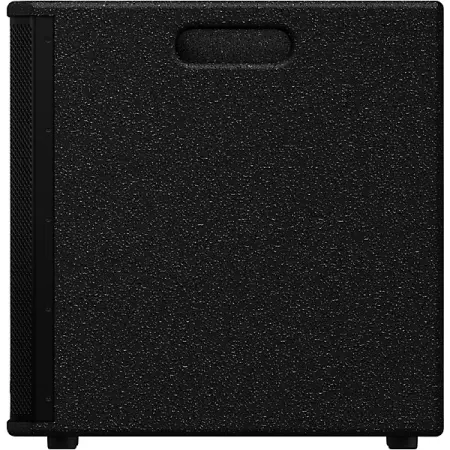

- Rubber feet and dual side handles for portability and vibration isolation
- M20 threaded pole-mount socket for easy system integration
XPRS1182ST Specifications
- System Type: 18” active vented subwoofer
- Power Rating: Class-D 4000W (Peak)
- Driver: 18” ferrite woofer with 3” (76mm) voice coil
- Frequency Response: 40Hz–120Hz (-6 dB)
- Max SPL: 130dB
- DSP Modes: Boost / Extended LF / Normal
- Crossover Frequencies: 80Hz / 100Hz / 120Hz (Low-Pass Filter)
- Protection: Overheat, Short Circuit, Digital Compressor
- Cooling: Temperature-controlled fan

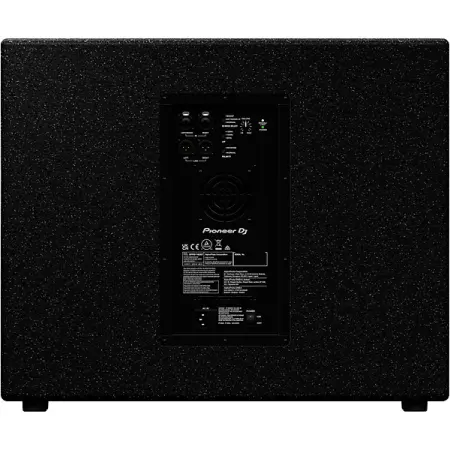

- Inputs: Left Mono (Combo), Right (XLR-F)
- Outputs: Left Mono, Right (XLR-M)
- Controls: Volume, Phase Switch, EQ Mode Selector, LPF Switch
- Power Supply: AC 110 V – 240 V (50Hz / 60Hz)
- Power Consumption: 800W (0.1W in standby mode)
- Enclosure: Plywood cabinet, black finish, foam-lined metal grille
- Mounting: M20 threaded pole-mount socket
- Dimensions: 26.02” x 21.06” x 21.12” (661mm x 535mm x 536.5mm)
- Net Weight: 71.9 lb (32.6 kg)
Pioneer XPRS1182-ST
(Pioneer DJ XPRS1182 ST)
