ProX XT-BLOCK-MK2 | Ground Support Corner Junction...
$864.99
Ground Support Sleeve Block for 12 In. F34 Truss Systems

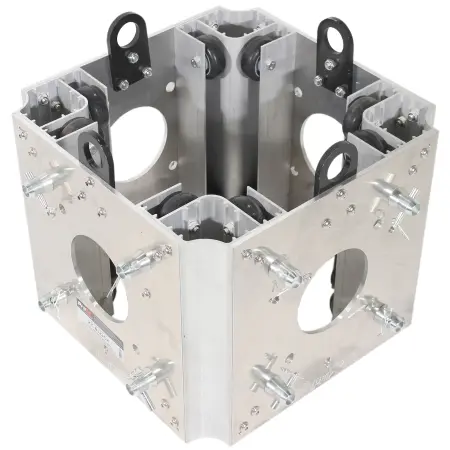

ProX XT-BLOCK Ground Support Sleeve Block for 12 In. F34 Truss Systems
Description
The ProX XT-BLOCK Truss Ground Support Sleeve Block is designed for F34 Series 12" Trussing and it includes 4 connecting sides and is one the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and durable trussing solution perfect for live outdoor productions, nightclubs, and permanent installations. ProX XT Series Truss compares favorably to the other major trussing manufacturers. We manufacture with EN-AWT6 6082 Aluminum for safety and strength. Our XT series F34 square truss utilizes a standard conical connector system, which easily mates with other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs -- while our outstanding quality control and manufacturing techniques assure excellent fitment at every connection. ProX offers a wide variety of corners, base plates, connectors and accessories that add stability while expanding on limitless design configurations.
Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.
Tolerance Free Standard Conical connector
Main tube wall thickness of .08in
XT-SQ SERIES DIMENSIONS:
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm
Features
Manufactured in our Own Factory!
Material: EN-AWT6 6082 Aluminum
TUV Certified Aluminium Welding
Built to exacting specifications
Includes tapered shear pins with clips
TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.
ProX Truss products utilize industry-standard dimensions to be compatible to connect to/with many other manufacturers F34 trussing products.
To Fit
Standard Size F34 Square Truss Configurations fits most F34 Truss manufactures with conical couplers.
Dimensions
22.50"L x 22.50"W x 18.50"H
Weight: 77.30 lbs
Shipping Dimensions
24.00"L x 24.00"D x 20.00"H
Shipping Weight: 80.00 lbs
Suggested Shipping Method: Parcel
UPC
019372406358
