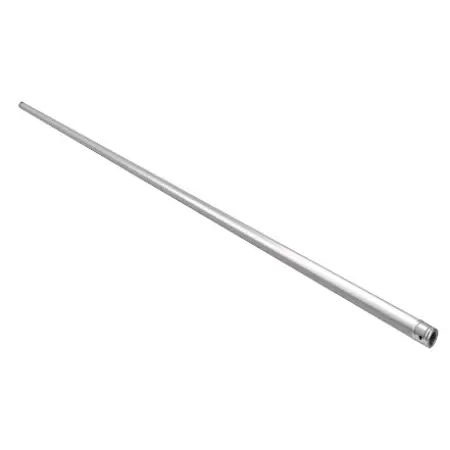

ProX XT-S820

Single Tube Truss Segment for Stage and Lighting Structures

The ProX XT-S820 is a high-quality 8.2-foot (2.5-meter) F31 single tube truss segment built for professional staging, rigging, and lighting applications. Constructed from EN-AWT6 6082 aluminum with a 2" outer diameter and 2mm wall thickness, this tube is designed for strength, safety, and compatibility with industry-standard trussing systems.

ProX XT-S820 Competitive Differences

• Manufactured from EN-AWT6 6082 aluminum for superior strength and safety
• 2" (50mm) outer diameter with a 0.079" (2mm) wall thickness
• TUV-certified aluminum welding ensures high performance and safety compliance
• Compatible with industry-standard F31 and F34 conical connector systems
• Ideal for both permanent and mobile installations – indoor or outdoor
• Includes one connecting hardware set
• Precision manufacturing for consistent and easy connection fitment

ProX XT-S820 Description

The ProX XT-S820 8.20 ft (2.5m) single tube truss segment is part of the trusted ProX XT series, widely used across the live entertainment, exhibition, retail, and installation markets. Its rugged construction and precise engineering make it a go-to solution for staging professionals who demand reliability and compatibility.

ProX manufactures this segment using high-grade EN-AWT6 6082 aluminum, known for its high tensile strength and corrosion resistance. With TUV-certified aluminum welding and tight quality control, every unit delivers dependable performance and long-term durability. The 2" outer diameter and 2mm wall thickness offer robust support, while the included conical connectors provide seamless integration with other industry-standard systems.

Whether you're building a temporary structure for a show or a permanent display rig, the XT-S820’s modularity and compatibility ensure it meets the requirements of your setup. Always consult a structural engineer when designing complex load-bearing structures.

XT-S820 Features

• Actual Length: 8.20 feet (2.5 meters)
• F31 single tube truss segment
• 2" (50mm) outer diameter tubing
• 0.079" (2mm) wall thickness
• EN-AWT6 6082 aluminum construction
• TUV-certified aluminum welding
• Includes one connecting hardware set
• Compatible with F34 trussing systems using conical connectors
• Ideal for indoor and outdoor use

XT-S820 Specifications

• Exterior Dimensions: 2.00"H x 2.00"W x 98.40"L
• Product Weight: 5.00 lbs
• Shipping Dimensions: 2.50"H x 2.50"W x 102.00"L
• Shipping Weight: 6.00 lbs
• Suggested Shipping Method: LTL
• UPC: 741459147945

ProX XT S820 (ProX XTS820)
