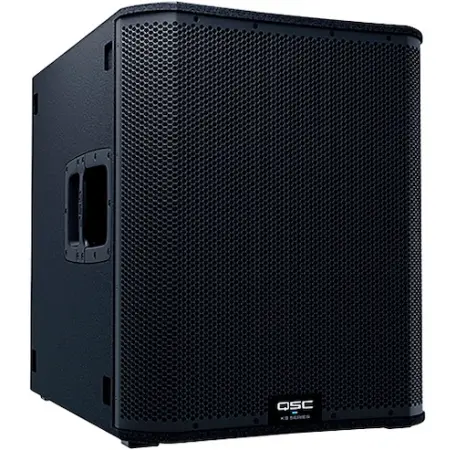

The KS118 is a very high output active subwoofer producing impressive low frequencies for mobile entertainment, AV production, clubs and performance venues. Featuring an 18-inch direct radiating driver powered by a 3600 Watt Class D amplifier, the KS118 delivers high sound pressure levels with dynamic and musical sound reproduction of very low frequencies.
On-board DSP optimizes and protects system performance as well as offers advanced capabilities such as the ability to array two units in a cardioid arrangement. Highly transportable, the rugged enclosure features comfortable handles and four low noise casters. An M20 threaded pole receptacle accepts a 35 mm pole for easy vertical deployment with full-range loudspeakers.
FEATURES:
Very high output with impressive low frequency performance
3600 Watt Class D amplifier module
18 inch (460 mm) long excursion direct radiating driver
Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
Selectable DEEPâ„¢ mode for extremely low frequency extension
Adjustable crossover and delay
Scenes for commonly-used applications that can be saved/recalled
Refined, professional and elegant appearance in any application
Rugged painted wood enclosure for lasting durability
Vertical or horizontal deployment (M20 threaded pole receiver for vertical setup)
Four low-noise, heavy-duty casters
Optional transport cover, KS-LOC security cover and 35 mm loudspeaker pole accessories available
6-Year Warranty with product registration
SPECIFICATIONS:
Configuration Direct Radiating
LF Transducer 460 mm (18 in), Cone
Frequency Response (-6 dB) 41 Hz - 98 Hz
Frequency Range (-10 dB) 35 Hz - 111 Hz
Nominal Coverage Angle Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
Maximum Rated SPL1 136 dB @ 1 m (peak)
Amplifier Class D
3600W (peak)
Cooling Low-noise, variable speed fan

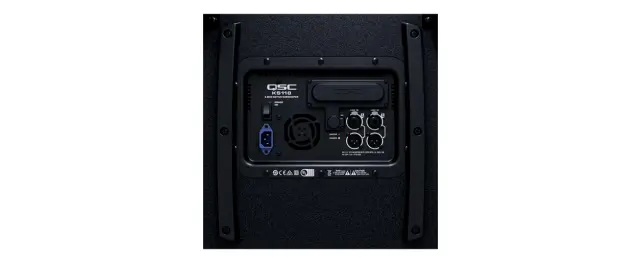

Controls Power On/Off
Gain Control
Rotary encoder
2 × selection buttons
Indicators 2 × Power LED (front and rear)
Input Signal LED
Limiter active LED
Connectors 2 × locking XLR/F ¼ inch combo
2 × XLR/M (Loop-thru Output)
1 × locking IEC power connector
AC Power Input Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption (â…› power) 100 VAC, 3.6 A / 120 VAC, 3.0 A / 240 VAC, 1.7 A
Enclosure Details
Enclosure 15 mm birch plywood
Color Black (RAL 9011)
Grille 16-gauge Black Powder Coated Steel
Speaker Dimensions (H×W×D) 640 × 520 × 785 mm
25.2 × 20.5 × 30.9 in
Carton Dimensions (H×W×D) 572 × 743 × 896 mm
22.5 × 29.3 × 35.3 in
Net Weight 47 kg / 104 lb (including casters)
Shipping Weight 56.5 kg / 124.6 lb
Regulatory CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Included Accessories 4 × Low-Noise, Heavy Duty Casters
Optional Accessories KS118 CVR Transport Cover, KS-LOC Lock-Out Cover
SP-26 and SP-36 Loudspeaker Poles, SP-16X Extension Pole
