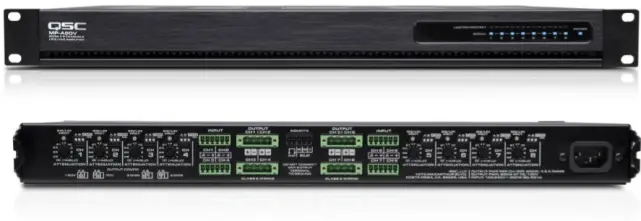

QSC MP-A40V
The QSC MP-A40V is a versatile 4-channel, 200W power amplifier designed specifically for music and paging applications. This amplifier is part of the MP-A Series, offering reliable performance and exceptional audio quality for various installed sound environments.
Key Features
- 4 channels of 200W output power
- Class-D amplification for high efficiency
- Flexible configuration for low impedance (4/8Ω) and 70V/100V systems
- Independent and bridged channel operation
- Euroblock input and output connectors
- Integrated high-pass filters on each channel
- Energy-efficient design with automatic standby mode
- Comprehensive protection circuitry
- Compact 1U rack-mountable design
- Front panel indicators for channel status and protection
Specifications
- Power Output: 4 x 200W
- Amplifier Class: Class-D
- Frequency Response: 20 Hz – 20 kHz (+0.2 dB, -0.5 dB)
- THD: < 0.1%
- Signal to Noise Ratio: > 100 dB
- Input Sensitivity: 1.2V (+4 dBu)
- High-Pass Filter: 70 Hz, selectable
- Input Connectors: Euroblock
- Output Connectors: Euroblock
- Standby Power Consumption: < 0.5W
- Dimensions: 1.75" x 19" x 15.9" (44 x 483 x 405 mm)
- Weight: 13.6 lbs (6.2 kg)
What's in the Box
- 1 x QSC MP-A40V Amplifier
- 1 x Power Cord
- 1 x User Manual
- 1 x Rack Mount Kit
NOTE: The QSC MP-A40V is perfect for commercial spaces requiring high-quality audio distribution for background music and paging systems.
QSC MPA40V
(QSC MP A40V)
