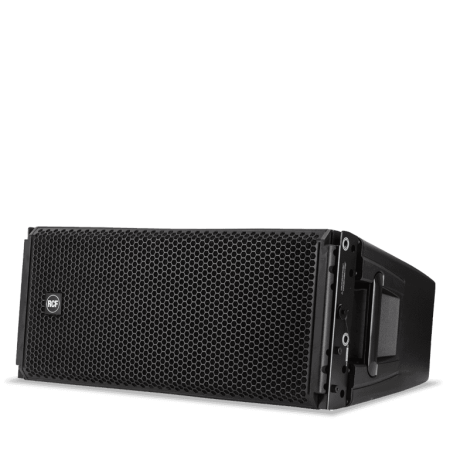

RCF HDL30A | Dual 10in - 137dB
Call For Price
HDL 30-A
ACTIVE TWO-WAY LINE ARRAY MODULE
2200W Two Way Amplifier
137 dB Max SPL
Exclusive FiRPHASE technology on-board
RDNet Control and Management
FEATURES
2200W Two Way Amplifier
137 dB Max SPL
48 kHz, 32 bit DSP processing
1.4" Titanium Compression Driver, 4.0" voice coil
2 x 10" Neodymium Woofers, 2.5" voice coil
Exclusive FiRPHASE technology on-board
RDNet Control and Management
680 Hz Crossover Point
The RCF HDL30-A is a compact bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. HDL 30-A is the first line array in a composite cabinet with zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 137 decibels SPL max. The RCF HDL30 -A features state of the art RCF transducers with neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system.
RCF RDNet
Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.
4 path waweguide
The custom 4 PATH designed waveguide allows a precise coverage of 100 x 15 degrees, while also delivering an excellent, linear high-frequency response. The unique shape of the four ducts forming the guide creates an ideal isophasic load from 680 Hz to the highest audible frequencies.
New perspective on linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Powerful class D amplifiers
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.
Neodymium RCF precision transducers
High frequencies - Superior compression driver with extreme precision in high frequency reproduction.
High-performance RCF ND940
4.0-inch diaphragm titanium compression driver
1.4-inch exit throat
680 Hz Crossover Point
Low frequencies - High power woofers. Very high efficient and controlled bass reproduction.
2 X 2.5”voice coil neodymium 10” woofers
Low frequencies handling down to 50 Hz
Water resistant fibre doped cone
Polycotton M-roll surround
Hypervented magnetic structure
Revolutionary rigging concept
The high strength enclosure in composite polypropylene has a revolutionary new rigging concept inspired by its big brother: the RCF HDL-50A. Compared to its acoustical power, it has a remarkably low weight for easy handling and flying. The integrated mechanics are both fast and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays starting with 0.2° angles. The hardware is designed for an easy and fast setup. The angle can be adjusted before to hang the system, on the ground, and slip automatically into the correct position when pulling up the array. Up to 20 HDL 30 -A modules can be fastened on a single flybar.
The ideal flyable bass complement
The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system.
It features one 4.0” voice coil, 18” Neodymium woofer to handle 136 dB SPL Max from 30 Hz to 140 Hz with maximum linearity and low distortion. The HDL 38-AS is perfect to create flown systems for theatrical and indoor venues. The built-in 3200W Class-D amplifier delivers excellent playback clarity and up to 136 decibels SPL max. With RDNet compatibility, the HDL 38-AS is part of the professional HDL System.
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
137 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
15°
Compression Driver:
1 x 1.4'' neo, 4.0'' v.c
Woofer:
2 x 10'' neo, 2.5'' v.c
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Crossover Frequencies:
680 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Preset, RDNet bypass
RDNet:
Yes
Total Power:
2200 W Peak, 1100 W RMS
High frequencies:
600 W Peak, 300 W RMS
Low frequencies:
1600 W Peak, 800 W RMS
Cooling:
Forced
Connections:
Powercon IN/OUT
Height:
293 mm / 11.54 inches
Width:
705 mm / 27.76 inches
Depth:
502 mm / 19.76 inches
Weight:
25 kg / 55.12 lbs
