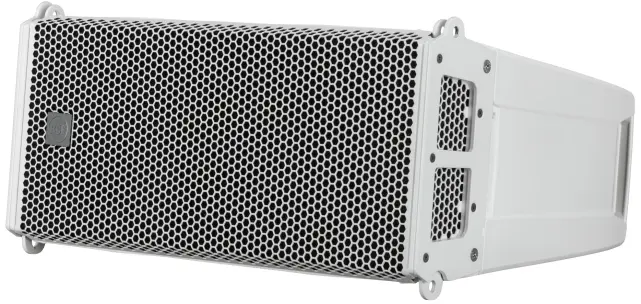

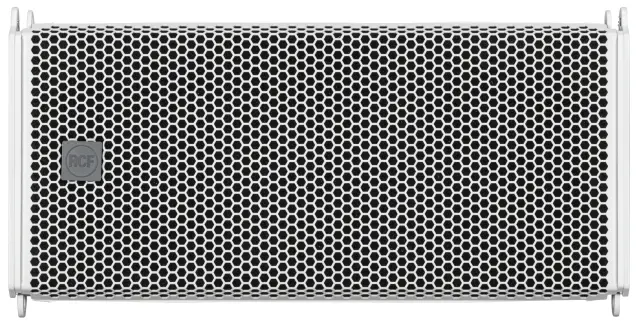

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system.
A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.
Features:
1400 W, two-way amplification
131 dB max SPL
1.7" voice coil neodymium compression driver
2 x high power neodymium 6.0"woofers
48 kHz, 32 bit floating point DSP processing
Symmetrical design
Extremely low weight
FiRPHASE processing
Specifications:
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:65 Hz ÷ 20000 Hz
Max SPL:131 dB
Horizontal coverage angle:100°
Vertical coverage angle:10°
Compression Driver:1.0" neo, 1.7" v.c.
Woofer:2 x 6" neo, 2.0" v.c.

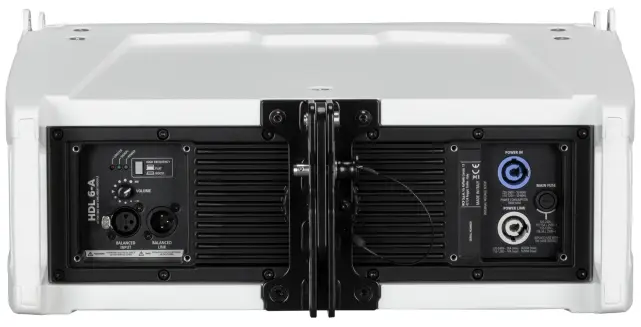

INPUT/OUTPUT SECTION
Input connectors:XLR male
Output connectors:XLR female
Input sensitivity:+4 dBu
PROCESSOR SECTION
Crossover frequencies:900 Hz
Protections:Thermal, RMS
Limiter:soft limiter
Controls:HF correction
AMPLIFIER SPECIFICATIONS
Total power:1400 W PEAK
High frequencies:400 W PEAK
Low frequencies:1000 W PEAK
Total power:700 W RMS
High frequencies:200 W RMS
Low frequencies:500 W RMS
Cooling:convection
Connections:Powercon in-out
CABINET
Cabinet Material:Composite PP
Hardware:array fittings
Handles:2 back
Colour: white
PHYSICAL SPECIFICATIONS
Height:237/9.3 mm/inch
Width:470/18.50 mm/inch
Depth:377/15.0 mm/inch
Net Weight:11.5/25.35 kg/lbs
